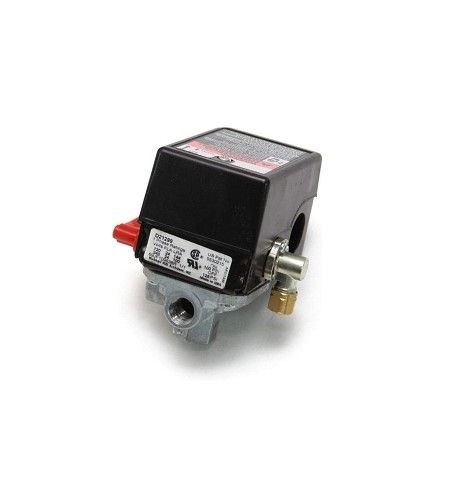

Devilbiss 5140117-69 Air Compressor Pressure Switch 4-Port 10

The Devilbiss 5140117-69 Air Compressor Pressure Switch 4-Port 10 controls compressor motor cycling by turning the motor on and off at preset pressure levels. Continuous running, pressure imbalance, switch failure, or startup issues are common problems linked to this four-port pressure switch.

Common Issues Related to this Part:

• Compressor will not start automatically.
• Pressure switch cycles too frequently.
• Air compressor fails to shut off at cut-out pressure.
• Pressure leaks around the 4-port switch connection.
• Burned or stuck pressure switch contacts.

Compressor Will Not Start.

Quick Check: Verify power is reaching the pressure switch and inspect the reset lever if equipped.

Fix Suggestion: Inspect the Devilbiss 5140117-69 pressure switch terminals for loose wiring or worn internal contacts. Replace the switch if contacts appear burned.

Prevention Tip: Keep compressor voltage stable and avoid overloading the compressor motor during startup cycles.

Pressure Switch Cycles Too Frequently.

Quick Check: Listen for rapid clicking from the pressure switch while the tank pressure changes.

Fix Suggestion: Check for air leaks around the 4-port fittings and confirm the pressure settings are properly calibrated for your compressor model.

Prevention Tip: Regularly inspect fittings and tank pressure levels to reduce unnecessary cycling stress on the switch.

Compressor Does Not Shut Off.

Quick Check: Observe whether tank pressure continues rising beyond the normal cut-out range.

Fix Suggestion: The internal cutoff mechanism inside the pressure switch may be sticking. Replace the pressure switch assembly if pressure regulation is inconsistent.

Prevention Tip: Drain moisture from the tank frequently to reduce corrosion buildup affecting switch performance.

Air Leakage Around Pressure Switch Ports.

Quick Check: Spray soapy water around the 4-port connections and look for bubbling.

Fix Suggestion: Reseat the fittings using thread sealant or replace damaged connectors attached to the switch body.

Prevention Tip: Avoid overtightening fittings, which can crack threaded ports or damage seals.

Burned Electrical Contacts.

Quick Check: Disconnect power and inspect for darkened or pitted contact surfaces inside the switch housing.

Fix Suggestion: Replace the Devilbiss pressure switch if electrical arcing or overheating has damaged the contacts.

Prevention Tip: Ensure the compressor motor amperage matches the switch rating to prevent premature electrical wear.

Customer Experience: After installing the Devilbiss 5140117-69 pressure switch, my compressor started cycling normally again and maintained pressure consistently.
