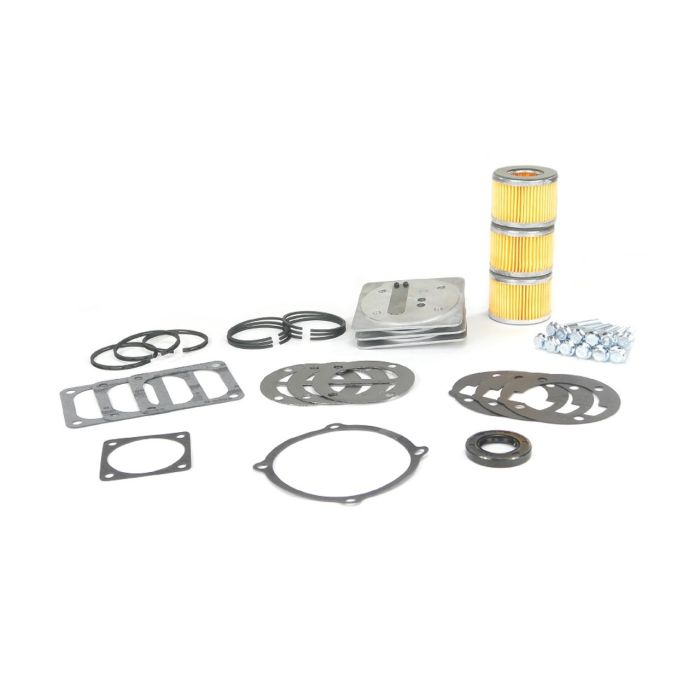

Dewalt 5140121-01 Air Compressor Overhaul Kit

The Dewalt 5140121-01 Air Compressor Overhaul Kit is designed to restore internal sealing performance, compression efficiency, and overall operational stability in compatible DeWalt air compressors. Improper installation or worn mating components can still lead to performance issues even after a rebuild.

Common Issues After Installation:

• Air leaking from head or valve plate area.
• Compressor failing to reach required pressure.
• Slow or inconsistent tank refill.
• Excess vibration or knocking noise.
• Short cycling or frequent restart behavior.

Air Leak from Pump Head After Overhaul.

Quick Check: Inspect gasket seating and valve plate alignment immediately after assembly.

Fix Suggestion: Reinstall head gasket from the overhaul kit ensuring even torque on all bolts, confirm reed valves and O-rings are properly seated without pinching.

Prevention Tip: Always tighten in a cross-pattern sequence and avoid over-compressing gaskets.

Compressor Not Building Proper Pressure.

Quick Check: Check piston ring installation and cylinder wall condition.

Fix Suggestion: Recheck piston ring orientation included in the Dewalt 5140121-01 kit, replace worn cylinder components if scoring is present.

Prevention Tip: Clean cylinder thoroughly before installing overhaul components.

Excessive Noise or Knocking After Rebuild.

Quick Check: Listen for irregular piston movement or loose internal fittings.

Fix Suggestion: Verify connecting rod alignment and ensure all kit seals are correctly seated, inspect valve plate for misalignment during reassembly.

Prevention Tip: Avoid dry installation—light lubrication on moving components reduces friction noise.

Compressor Cycling Too Frequently.

Quick Check: Observe tank pressure drop rate during idle.

Fix Suggestion: Check for minor leaks around fittings replaced using kit O-rings,reinspect discharge valve sealing integrity.

Prevention Tip: Apply thread sealant where required and ensure all fittings are fully tightened.

Customer Experience: Many users report that after installing the 5140121-01 overhaul kit, older DeWalt compressors regain strong pressure recovery and smoother operation. One user mentioned the unit , felt almost brand new again once all seals were properly aligned,especially after resolving minor head gasket misplacement.
