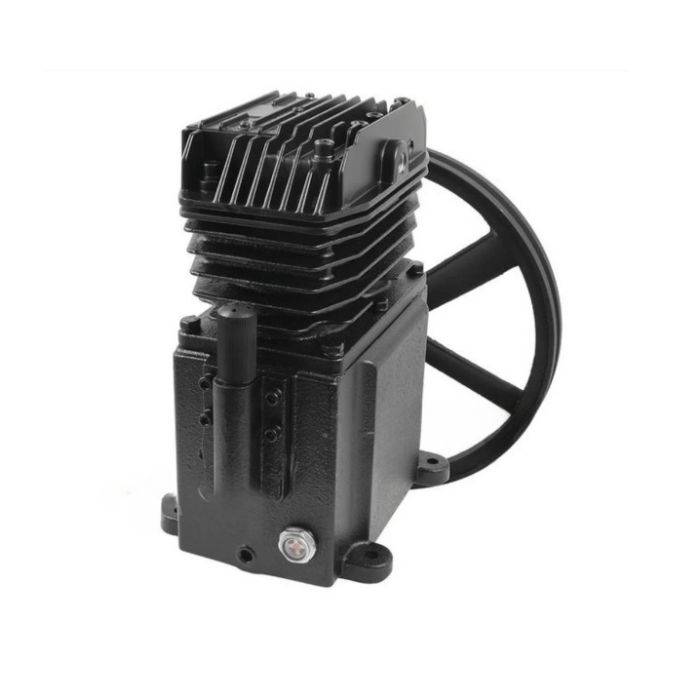

Dewalt 5140121-17 Air Compressor Pump Assembly

The Dewalt 5140121-17 Air Compressor Pump Assembly is a complete replacement pump unit designed to restore compression performance, airflow delivery, and pressure recovery in compatible DeWalt air compressors. When issues occur after installation or during operation, they are usually linked to sealing alignment, valve behavior, or system compatibility.

Common Issues Observed:

• Compressor runs but fails to build pressure.
• Air leaking from pump head or outlet port.
• Slow tank fill or reduced airflow output.
• Excessive heat buildup during operation.
• Loud knocking or irregular pumping sound.

Compressor Runs but No Pressure Build-Up.

Quick Check: Inspect intake and outlet valve plate alignment.

Fix Suggestion: Ensure reed valves inside the 5140121-17 pump assembly are seated correctly, verify that inlet filter and intake path are not blocked.

Prevention Tip: Always check valve orientation during installation to avoid reverse airflow issues.

Air Leak From Pump Head or Connections.

Quick Check: Listen for continuous hissing near gasket or discharge area.

Fix Suggestion: Reseat head gasket and confirm even torque on mounting bolts, replace any damaged sealing surfaces on the pump interface.

Prevention Tip: Use a cross-pattern tightening sequence to ensure uniform seal compression.

Excessive Heat During Operation.

Quick Check: Check runtime duration and ventilation around compressor housing.

Fix Suggestion: Verify lubrication level in pump crankcase, ensure internal piston movement is smooth without binding.

Prevention Tip: Avoid continuous duty cycles beyond manufacturer limits to prevent overheating.

Loud Knocking or Vibration After Installation.

Quick Check: Observe mounting stability and pulley alignment.

Fix Suggestion: Recheck motor-to-pump alignment and belt tension, inspect internal mounting bolts for looseness.

Prevention Tip: Always secure pump assembly mounts before full-speed testing.

Customer Experience: Users replacing older DeWalt pump assemblies with the 5140121-17 unit often report a noticeable improvement in airflow stability and pressure recovery. One common observation is that compressors regain smooth cycling behavior once valve seating and gasket alignment are correctly dialed in, especially after initial break-in adjustments.
