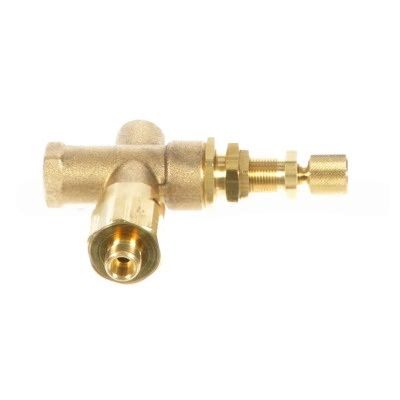

The Dewalt 5140177-63 Compressor Pilot Valve plays a critical role in controlling compressor cut-in/cut-out and unloading pressure. When it fails or performs poorly, the compressor may behave unpredictably.
Common Issues Linked to this SKU:
- Compressor keeps running and does not shut off at set pressure.
- Rapid on/off cycling during operation.
- Air leaking continuously from pilot/unloader line.
- Compressor fails to build or maintain proper tank pressure.
- Audible hissing noise near valve assembly.
Compressor Not Shutting Off at Cut-Out Pressure.
Quick Check: Observe whether tank reaches cut-out but motor continues running.
Fix Suggestion: Inspect the pilot valve for internal sticking or carbon buildup; replace if unresponsive.
Prevention Tip: Regularly drain tank moisture to reduce internal valve corrosion.
Rapid Cycling On and Off.
Quick Check: Check if compressor starts and stops in short bursts without full pressure stabilization.
Fix Suggestion: Replace worn diaphragm or weakened spring inside the pilot valve.
Prevention Tip: Avoid operating compressor beyond duty cycle rating.
Continuous Air Leak From Unloader Line.
Quick Check: Listen for constant hissing near pilot valve or unloader tubing.
Fix Suggestion: Tighten fittings and replace damaged seals or valve body if leakage persists.
Prevention Tip: Ensure proper thread sealing during installation.
Compressor Not Building Proper Pressure.
Quick Check: Monitor tank pressure rise and if it stalls early, valve may be stuck open.
Fix Suggestion: Clean or replace the pilot valve to restore correct pressure control.
Prevention Tip: Use clean, dry air intake filtration to prevent debris ingress.
Customer Experience: Many users report that replacing the 5140177-63 pilot valve immediately restores stable cycling and eliminates constant air leakage. A common remark is that the compressor returns to smooth, factory-like operation after installation, especially when issues were caused by worn internal seals.
