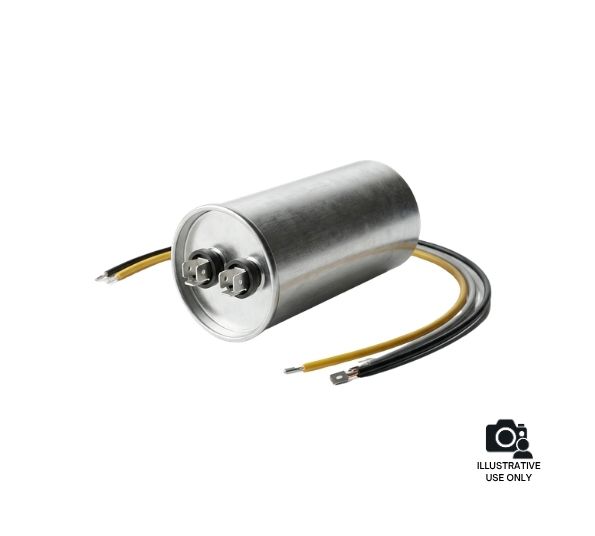

The Dewalt 5140236-21 Run Capacitor is an electrical motor support component used in select Dewalt air compressor systems, especially those requiring steady single-phase motor operation. It helps stabilize voltage delivery to the motor windings, improves running efficiency, and reduces strain during continuous compressor cycles.
Common Issues with this Part:
- Compressor motor struggles to maintain steady speed.
- Unit overheats during normal operation.
- Compressor randomly shuts off under load.
- Weak air pressure output despite running motor.
- Audible humming without proper motor acceleration.
Motor Humming but Not Running Smoothly.
Quick Check: Listen for low-frequency hum without full motor rotation
Fix Suggestion: Replace the Dewalt 5140236-21 if capacitance has dropped below operating range or internal dielectric damage is present
Prevention Tip: Avoid running compressor on unstable power supply or undersized extension cords
Compressor Overheating During Operation
Quick Check: Check motor housing temperature after short runtime
Fix Suggestion: Install a new run capacitor if voltage support to the motor windings is inconsistent
Prevention Tip: Ensure proper ventilation around compressor motor housing
Weak or Inconsistent Air Pressure Output
Quick Check: Compare fill time to normal tank pressure recovery
Fix Suggestion: Replace capacitor if motor speed is reduced, limiting pump performance
Prevention Tip: Maintain clean intake filters to prevent motor overload conditions
Compressor Randomly Shuts Off Under Load
Quick Check: Observe if breaker trips or thermal protection activates
Fix Suggestion: Replace the Dewalt 5140236-21 if it is failing under sustained load conditions
Prevention Tip: Avoid extended continuous-duty operation beyond rated cycle time
Customer Experience: Users replacing the Dewalt 5140236-21 Air Compressor Run Capacitor often report smoother motor startup and noticeably more stable pressure recovery. In many repair cases, restoring capacitor performance eliminates overheating and stalling behavior without needing full motor replacement.
