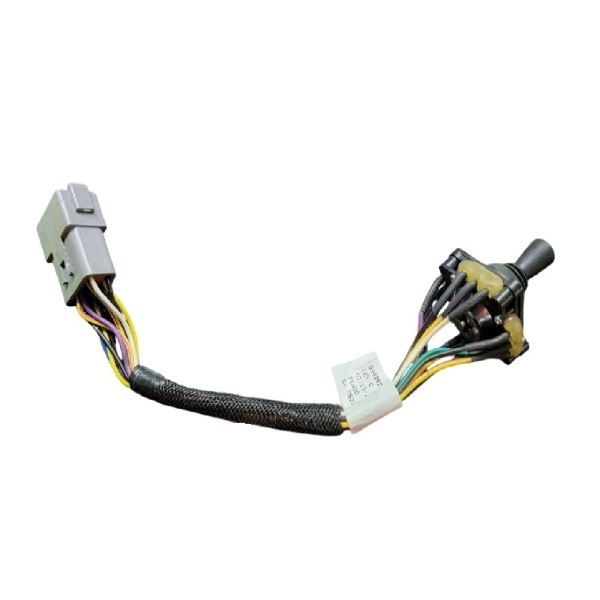

Ariens Company 09429200 Snow Blower Joystick Harness

Product Overview:

Precise electrical connections are essential for transmitting control inputs through a snow blower’s joystick-operated system. The Ariens Company 09429200 Snow Blower Joystick Harness is a genuine OEM replacement wiring harness designed for snow blower equipment. It provides the electrical connection pathway associated with the joystick control assembly, helping carry control signals between the relevant components and support the intended operation of the equipment’s control system.

Electrical Signal Routing:

The joystick harness routes electrical connections between the joystick control and the corresponding components in the equipment’s control system. Properly connected wiring supports the transmission of control inputs needed for the intended response of the associated mechanism.

Wire Insulation and Protection:

Insulated conductors help separate electrical pathways and protect the wiring during normal operation. The harness arrangement also helps organize the connected wires within the equipment, supporting orderly routing around the control assembly.

Replacement Guidelines:

Replace the Ariens Company 09429200 Snow Blower Joystick Harness when damaged wiring, deteriorated insulation, faulty connectors, or electrical continuity problems affect normal control operation. Replacement may also be necessary when the harness has physical damage that compromises its connections or electrical function.

Common Failure Symptoms:

• Intermittent response from the joystick-controlled system.
• Electrical control inputs that do not register consistently.
• Loose, damaged, or corroded connectors.
• Visible cuts, abrasions, or deterioration in wire insulation.
• Intermittent electrical continuity.
• Control-system operation affected by damaged wiring.

Equipment Compatibility:

The OEM Ariens Company 09429200 Snow Blower Joystick Harness is listed for select Ariens snow blower models, including the Ariens Hydro Pro Alpine 28-inch snow blower model 926080 with the specified engine configuration and serial-number range. Verify the complete equipment model, serial number, and official Ariens parts diagram before purchasing to confirm the correct application.

The Ariens Company 09429200 Snow Blower Joystick Harness connects the joystick control to the electrical control system, helping provide reliable signal transmission for responsive chute and control operations on suitable Ariens snow blowers.

Common Issues:

• Joystick commands respond intermittently.

• Control wiring causes inconsistent electrical response.

• Harness connections become loose during operation.

• Damaged wires interrupt joystick signals.

• Snow blower controls stop responding through the joystick.

Intermittent Joystick Signals

Quick Check: Examine the harness connectors and wire routing for looseness, pulled terminals, or visible damage.

Fix Suggestion: Secure loose connections and renew the harness if its wiring or terminals are damaged.

Prevention Tip: Keep the harness properly routed and away from areas that can pinch or rub the wiring.

Loose Control Connections

Quick Check: Gently verify that the joystick harness connectors remain firmly seated.

Fix Suggestion: Reconnect any partially seated plugs and secure the related wiring away from moving components.

Prevention Tip: Check connector seating during routine snow blower service.

Damaged Harness Wiring

Quick Check: Look for cuts, exposed conductors, crushed sections, or insulation wear along the harness.

Fix Suggestion: Replace the damaged harness rather than relying on temporary wire repairs.

Prevention Tip: Avoid pulling on the harness when servicing the joystick or nearby electrical components.

Joystick Response Loss

Quick Check: Trace the harness from the joystick area toward its connected electrical points for separation or damage.

Fix Suggestion: Restore the affected connection or fit a new harness when wiring damage is present.

Prevention Tip: Maintain proper wire slack so the harness is not stretched when the controls are moved.

Customer Experience: Replacing the Ariens Company 09429200 Joystick Harness restored full joystick control, allowing my snow blower chute controls to respond smoothly and consistently again.

• What does the Ariens 09429200 joystick harness do?

  This genuine OEM replacement wiring harness provides the electrical connection pathway for the joystick control assembly, helping transmit control inputs between the relevant components.

• How does the joystick harness support electrical control signals?

  The harness routes electrical connections between the joystick and corresponding control-system components, supporting the intended response of the associated mechanism.

• How can I verify that this joystick harness fits my Ariens snow blower?

  Check the complete equipment model, serial number, engine configuration where applicable, and official Ariens parts diagram before purchasing to confirm compatibility with part number 09429200.

• What are the signs that the joystick harness may need replacement?

  Intermittent control response, inconsistent input registration, damaged connectors, deteriorated wire insulation, or electrical continuity problems may indicate that the harness needs inspection and possible replacement.

• How should I maintain the Ariens joystick wiring harness?

  Periodically inspect accessible wiring, insulation, and connectors for visible damage, looseness, or deterioration that could affect electrical connections and control operation.
