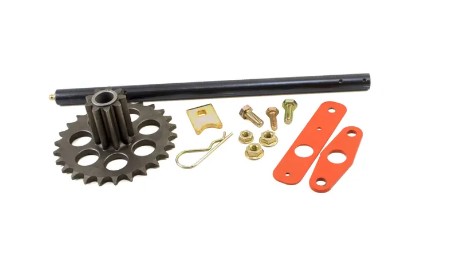

Ariens Company 52603500 Pinion Shaft Frame Repair Kit

Product Overview:

Provides structural support for the pinion shaft within the snow blower's mechanical drive assembly, helping maintain the shaft's position relative to connected drive components. The Ariens Company 52603500 Snow Blower Pinion Shaft Frame Repair Kit is an OEM mechanical drive repair kit designed for applicable Ariens equipment, including select snow blowers and power brushes.

Shaft Support:

The pinion shaft frame supports the shaft and maintains its intended position within the drive mechanism. This structural arrangement helps preserve the alignment between the pinion shaft and related transmission components, allowing rotational force to pass through the mechanical drive assembly.

Replacement Guidelines:

Replace the Ariens Company 52603500 Snow Blower Pinion Shaft Frame Repair Kit when the existing frame components are cracked, deformed, or unable to hold the pinion shaft securely in position. Replacement may also be necessary when damaged mounting points or retaining components prevent proper shaft support and alignment.

Common Signs of Wear:

• Cracks or deformation around the pinion shaft frame.
• Damaged mounting points or retaining areas.
• Excessive looseness around the shaft-support assembly.
• Visible misalignment of the pinion shaft.
• Abnormal mechanical noise or irregular drive operation associated with frame or shaft-support problems.

Equipment Compatibility:

The Ariens Company 52603500 Snow Blower Pinion Shaft Frame Repair Kit is an OEM mechanical drive repair kit intended for select Ariens snow blowers and power brushes, as well as certain Gravely equipment applications. Confirm the equipment model and part number 52603500 against the applicable manufacturer parts information to establish fitment.

The Ariens Company 52603500 Pinion Shaft Frame Repair Kit helps restore proper alignment and support for the pinion shaft assembly in compatible Ariens snow blowers. It reinforces the mounting area, helping maintain smooth power transfer between the friction drive components and the axle.

This part fixes the following symptoms:

• Snow blower hesitates to move forward.

• Drive system produces grinding noises.

• Pinion shaft shifts during operation.

• Inconsistent forward or reverse movement.

• Excessive wear around shaft support.

Snow Blower Hesitates To Move

Quick Check: Inspect the pinion shaft mounting area for looseness, worn brackets, or movement that affects drive engagement.

Fix Suggestion: Tighten loose hardware and inspect the shaft support assembly before replacing damaged repair kit components.

Prevention Tip: Inspect the drive frame before each winter season and address loose components before operating.

Drive System Produces Grinding Noises

Quick Check: Listen for grinding while inspecting the pinion shaft, sprocket, and surrounding frame support for wear.

Fix Suggestion: Remove debris from the drive assembly and inspect mating components for excessive wear or misalignment.

Prevention Tip: Maintain proper lubrication of applicable drive components and inspect the drive system regularly.

Pinion Shaft Shifts During Operation

Quick Check: Examine the frame support and shaft brackets for excessive play, cracks, or worn mounting points.

Fix Suggestion: Correct loose mounting hardware and replace damaged support components that no longer hold proper shaft alignment.

Prevention Tip: Periodically inspect frame mounting locations after extended snow clearing sessions.

Inconsistent Forward Or Reverse Movement

Quick Check: Verify the pinion shaft remains properly aligned while engaging different drive speeds.

Fix Suggestion: Inspect linkage adjustments and ensure the repair kit components are securely installed without excessive movement.

Prevention Tip: Avoid abrupt direction changes while the snow blower is under heavy load.

Customer Experience: A customer reported smoother drive engagement and more consistent forward movement after installing the pinion shaft frame repair kit and servicing the drive assembly.

• What components does the Ariens 52603500 Pinion Shaft Frame Repair Kit service?

  The kit is designed to service the pinion shaft frame assembly, which supports the pinion shaft and maintains its position within the equipment's drive mechanism.

• What part of the drive system does the Ariens 52603500 repair kit address?

  The kit addresses the pinion shaft frame assembly, which supports the pinion shaft and helps maintain its position within the mechanical drive system.

• Can a damaged pinion shaft frame affect snow blower drive performance?

  Yes. A cracked or deformed frame can affect shaft positioning and alignment, potentially contributing to abnormal noise, excessive movement, or irregular drive operation.

• When is a pinion shaft frame repair kit appropriate instead of replacing the entire drive assembly?

  A repair kit may be appropriate when the problem is confined to the pinion shaft frame or its supporting components and the remaining drive assembly is serviceable. The required repair depends on the condition of the related components.

• How do I confirm that Ariens part 52603500 is the correct repair kit for my equipment?

  Match part number 52603500 with the equipment model and applicable Ariens or Gravely parts information to confirm that the kit is intended for the specific pinion shaft frame assembly.
