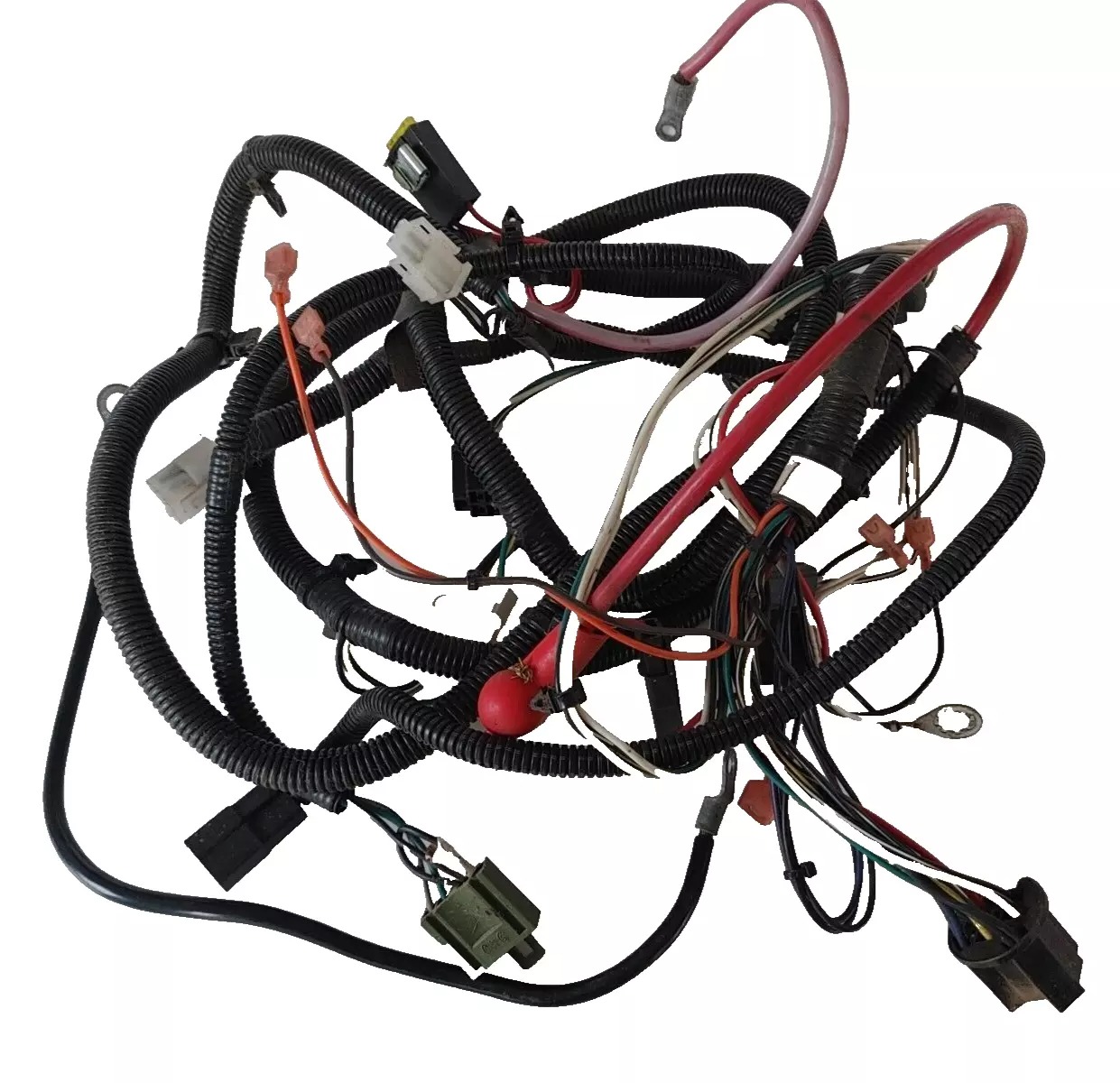

Ayp Craftsman 401098 Lawn Tractor Dash Ignition Harness

Product Overview:

Provides an organized electrical connection between the lawn tractor's dashboard ignition controls and associated electrical circuits. The AYP Craftsman 401098 Lawn Tractor Dash Ignition Harness groups multiple wires, terminals, and connectors into a structured wiring assembly, allowing electrical power and control signals to travel between the ignition switch and connected circuits. Proper routing helps maintain circuit continuity and keeps the dashboard wiring organized, supporting the electrical functions associated with starting, operation, and shutdown.

Circuit Connectivity:

Maintains electrical pathways between the ignition switch and connected circuits. The harness combines multiple conductors into one organized assembly, helping maintain proper connections between individual electrical components. Secure terminals and intact wiring are important for maintaining consistent electrical continuity throughout the ignition circuit.

Connector and Terminal Support:

Provides multiple connection points for the dashboard ignition system. Secure connectors and terminals help maintain reliable electrical contact during normal tractor operation, where vibration and movement can place stress on wiring assemblies. Corrosion, looseness, or terminal damage can increase electrical resistance or interrupt continuity.

Replacement Guidelines:

Replace the Dash Ignition Harness if it is frayed, cut, cracked, burned, corroded, damaged, or otherwise deteriorated, or if the electrical connections are loose or unreliable. The SKU 401098 should be verified before replacement to ensure the correct ignition harness is selected. Replace the harness if deterioration affects electrical continuity, ignition function, starting performance, safety interlocks, or normal lawn tractor operation.

Common Failure Symptoms:

• Engine does not crank when the ignition key is operated.
• Intermittent starting or electrical operation.
• Broken or damaged wires.
• Worn, cracked, or exposed insulation.
• Loose or corroded connectors.
• Damaged terminals.
• Intermittent ignition circuit operation.
• Electrical continuity problems.

Equipment Compatibility:

The AYP Craftsman 401098 Lawn Tractor Dash Ignition Harness is intended for compatible AYP and Craftsman lawn tractor equipment requiring the specified dash ignition harness configuration. Compatibility should be confirmed by matching part number, the complete lawn tractor model information, and applicable parts documentation before purchase. Verify the harness configuration, electrical connections, and routing requirements to ensure proper fit and reliable ignition-system operation.

The Ayp Craftsman 401098 Lawn Tractor Dash Ignition Harness connects the dash ignition controls with related electrical circuits, while wiring faults can cause starting or switch-response issues.

This part fixes the following symptoms:

• Tractor does not respond when the ignition key is turned.

• Dash ignition connections intermittent during operation.

• Wiring shows loose terminals or damaged insulation.

• Electrical response changes when the dash harness moves.

• Ignition-related circuit loses consistent electrical continuity.

Ignition Response Is Intermittent

Quick Check: Turn the ignition control while observing electrical response.

Fix Suggestion: Restore loose harness connections at the dash terminals.

Prevention Tip: Keep harness connectors firmly seated during routine servicing.

Tractor Does Not Respond

Quick Check: Examine the ignition harness connectors for disconnected terminals.

Fix Suggestion: Trace the harness path for interrupted electrical continuity.

Prevention Tip: Avoid pulling harness wires during dash maintenance work.

Damaged Harness Wiring

Quick Check: Examine insulation and wires for cuts or exposed sections.

Fix Suggestion: Address damaged wiring before continued tractor operation.

Prevention Tip: Route harness wiring away from sharp edges carefully.

Loose Dash Connection

Quick Check: Gently verify each harness connector remains properly seated.

Fix Suggestion: Secure loose terminals within their designated connector positions.

Prevention Tip: Recheck harness connections after dashboard component servicing.

Customer Experience: The Lawn Tractor Dash Ignition Harness helped restore dependable electrical connections and more consistent communication between the ignition switch and starting circuits.

• What should be inspected on the AYP Craftsman 401098 ignition harness?

  Check the wiring, insulation, connectors, terminals, and routing for visible damage, corrosion, loose connections, or signs of wear that could affect electrical continuity.

• What are common signs of a faulty ignition harness?

  Starting problems, intermittent electrical operation, damaged insulation, loose connectors, corroded terminals, and loss of electrical continuity can indicate harness problems.

• What can damage a lawn tractor ignition harness?

  Vibration, moisture, heat, corrosion, pinching, abrasion, connector damage, and prolonged use can contribute to wiring harness deterioration.

• Can a damaged harness prevent a lawn tractor from starting?

  Yes. A broken wire, poor terminal connection, or interrupted circuit can prevent the ignition system from completing the required electrical pathway.

• Why are connector conditions important in an ignition harness?

  Connectors provide electrical contact between the harness and connected components. Loose, damaged, or corroded connectors can interrupt electrical continuity and cause intermittent operation.
