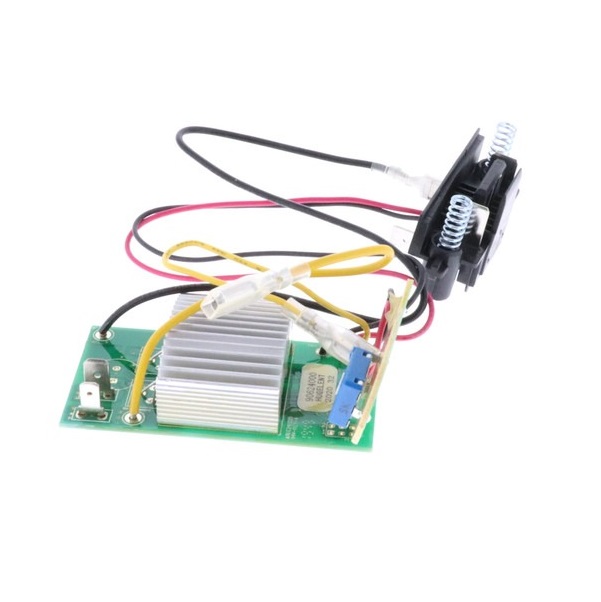

Black & Decker 90624000 String Trimmer PCB Assembly

The Black & Decker 90624000 String Trimmer PCB Assembly manages electrical signals between the battery, controls, and motor, while circuit wear can affect power delivery, motor response, and overall trimmer operation.

This part corrects the following symptoms:

• String trimmer fails to respond after battery connection.

• Motor operation intermittent during trimming.

• Power delivery to the motor becomes inconsistent.

• Control response becomes delayed during operation.

• PCB area shows signs of electrical overheating.

No Motor Response

Quick Check: Check the battery connection and PCB input voltage first.

Fix Suggestion: Trace the power direction through the circuit board.

Prevention Tip: Keep battery contacts clean and free from debris buildup.

Intermittent Motor Operation

Quick Check: Observe whether a motor normal operation cuts in and out.

Fix Suggestion: Check PCB connections for unstable electrical contact points.

Prevention Tip: Avoid operating with loose battery connections during trimming.

Inconsistent Power Delivery

Quick Check: Monitor motor response while applying normal cutting load.

Fix Suggestion: Check the circuit paths for irregular power transfer.

Prevention Tip: Keep electrical connections protected from moisture and contamination.

PCB Overheating

Quick Check: Look for unusually high heat around circuit components.

Fix Suggestion: Address excessive electrical resistance within the PCB circuit.

Prevention Tip: Allow adequate airflow around electrical component areas during use.

Customer Experience: A customer indicated a more stable trimmer operation after fitting the Black & Decker 90624000 String Trimmer PCB Assembly to resolve an inconsistent electrical response.
