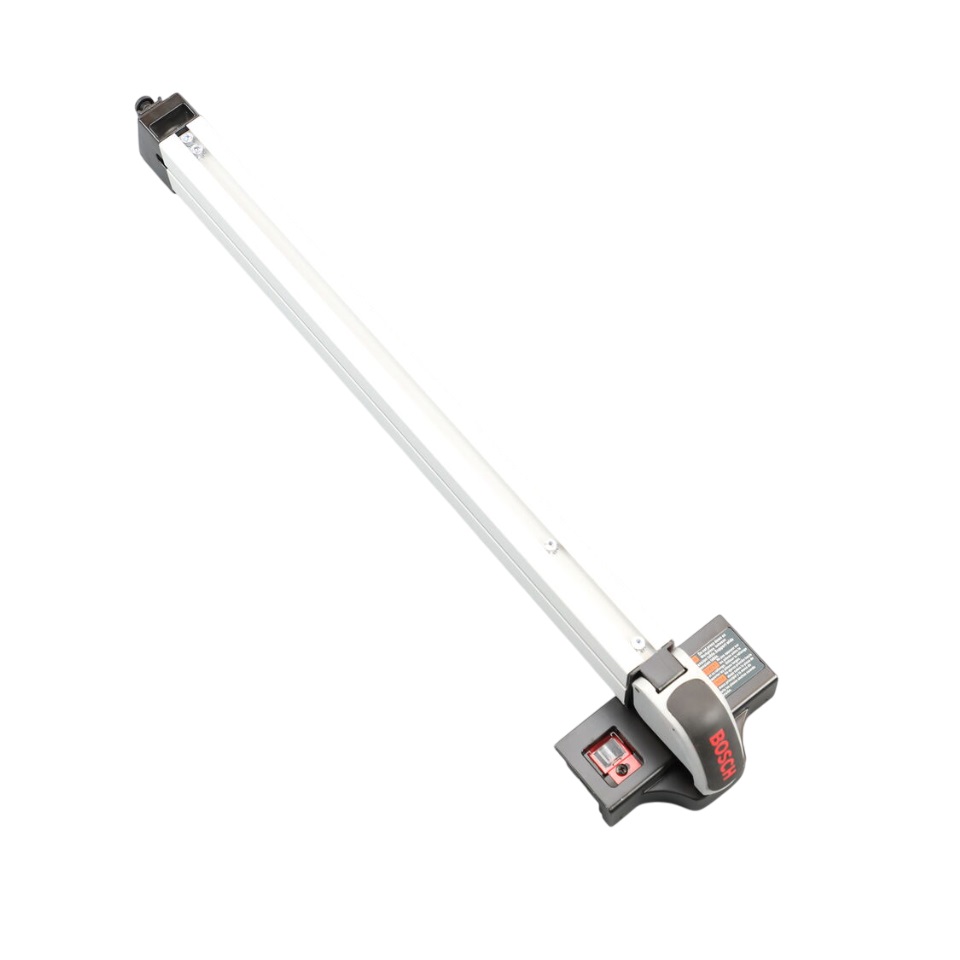

Bosch Power Tools 1600A01R17 Rip Fence Assy

SKU: 1600A01R17 1600A01R17 Brand: Availability:
In Stock
(0)

$133.56 Price reduced from $139.95
Save $6.39


Have a Question? +1 (866) 963-0907

Specifications:

Attribute Details
Brand Bosch Power Tools
Part Number 1600A01R17
Component Type Rip Fence Assembly
Application Table Saw

Description

The Bosch Power Tools 1600A01R17 Rip Fence Assembly is a precision cutting accessory for Bosch table saws. It’s a critical component that makes sure that the cuts are accurate and repeatable from end to end of a workpiece. The rip fence assembly includes a fence, a clamping mechanism, and a measuring scale. The fence is the long straight edge on the long edge of your saw blade and slides parallel to the saw blade The clamping mechanism secures it to the saw table so that it stays in perfect form. Users can set the desired cutting width with accuracy on the measuring scale. Users can precisely make cuts by adjusting the fence position and locking it, with minimal deviation.

Dimensions:

  • Weight: 0.5 lbs

Product Overview:

Designed to support accurate workpiece positioning, the Bosch Power Tools 1600A01R17 Table Saw Rip Fence Assembly provides a stable guiding edge for rip-cut operations. It helps maintain the selected cutting width by keeping material aligned as it moves across the table saw, contributing to consistent and controlled cutting results.

Cutting Guide Alignment:

Accurate fence positioning helps keep the workpiece aligned with the intended cutting path as it moves across the table. A properly functioning rip fence supports consistent spacing between the blade and the guide, helping reduce unwanted movement during cutting.

Fence Position Retention:

The rip fence maintains a consistent guiding position alongside the saw blade during rip-cut operations. Its locking arrangement holds the selected fence setting while the workpiece moves along the guide, helping preserve the intended cutting width throughout the cut.

Replacement Guidelines:

Replace the Bosch Power Tools 1600A01R17 Table Saw Rip Fence Assembly if it is bent, cracked, fails to lock securely, or cannot maintain accurate positioning. If these issues occur, have a qualified technician inspect the table saw and handle the replacement.

Common Signs of Wear:

  • Fence body is bent or visibly distorted.
  • Locking mechanism does not hold the selected position.
  • Fence shifts during workpiece movement.
  • Damaged contact or guiding surfaces interfere with alignment.
  • Cracks or broken components affect assembly stability.
  • Difficulty setting or maintaining consistent cutting widths.

Equipment Compatibility:

The Bosch Power Tools 1600A01R17 Table Saw Rip Fence Assembly is intended for table saw configurations designed to accept this specific fence assembly. This OEM replacement should be matched against the saw's model and illustrated parts diagram before purchase, as fence dimensions, mounting arrangements, and locking features can vary between machines. Confirming the part number helps establish the correct fit.

The Bosch Power Tools 1600A01R17 Rip Fence Assy helps maintain accurate fence alignment on compatible table saws. Fence positioning, locking, and tracking issues can affect cutting precision and overall saw performance.

Common Issues:

• Rip fence does not lock securely during operation.

• Fence alignment is inconsistent across the table surface.

• Fence shifts slightly while making cuts.

• Difficulty sliding the fence smoothly along guide rails.

• Cuts are not parallel to the blade.

Rip Fence Will Not Lock Properly

Quick Check: Inspect the fence locking mechanism for proper engagement.

Fix Suggestion: Reinstall the rip fence assembly and ensure all mounting points are correctly seated.

Prevention Tip: Check fence engagement before each cutting session.

Fence Alignment Is Off

Quick Check: Measure the distance from the fence to the blade at both front and rear positions.

Fix Suggestion: Adjust the fence according to the table saw's alignment procedure.

Prevention Tip: Periodically verify fence alignment after transporting the saw.

Fence Slides Poorly

Quick Check: Examine guide surfaces for debris or obstructions.

Fix Suggestion: Clean the rail contact areas and confirm the fence is properly positioned.

Prevention Tip: Keep rails free from sawdust buildup.

Fence Moves During Cutting

Quick Check: Confirm the locking lever fully secures the fence.

Fix Suggestion: Inspect the assembly for wear or improper installation.

Prevention Tip: Avoid excessive side pressure against the fence while cutting.

Customer Experience: A customer reported that replacing a worn fence assembly restored smooth fence movement and improved rip-cut accuracy on their compatible Bosch table saw.

Disclaimer: Troubleshooting guidance provided for reference only.
  • What is the purpose of the Bosch 1600A01R17 Table Saw Rip Fence Assembly?

    It guides and positions workpieces parallel to the saw blade, helping maintain the selected cutting width during rip-cut operations.

  • What should I check if the Bosch 1600A01R17 Rip Fence does not stay in its selected position?

    Inspect the locking mechanism, engagement points, and fence assembly for looseness, wear, or visible damage that could prevent secure positioning.

  • What can cause a table saw rip fence to shift during cutting?

    A worn or damaged locking mechanism, loose engagement, or a distorted fence assembly can prevent the fence from holding its selected position.

  • How does fence alignment affect rip-cut accuracy?

    Incorrect alignment can change the spacing between the blade and fence, affecting the intended cutting width and workpiece guidance.

  • What should I verify before ordering the Bosch 1600A01R17 Table Saw Rip Fence Assembly?

    Check the table saw's model number and illustrated parts diagram to confirm that part 1600A01R17 is listed for your equipment.
