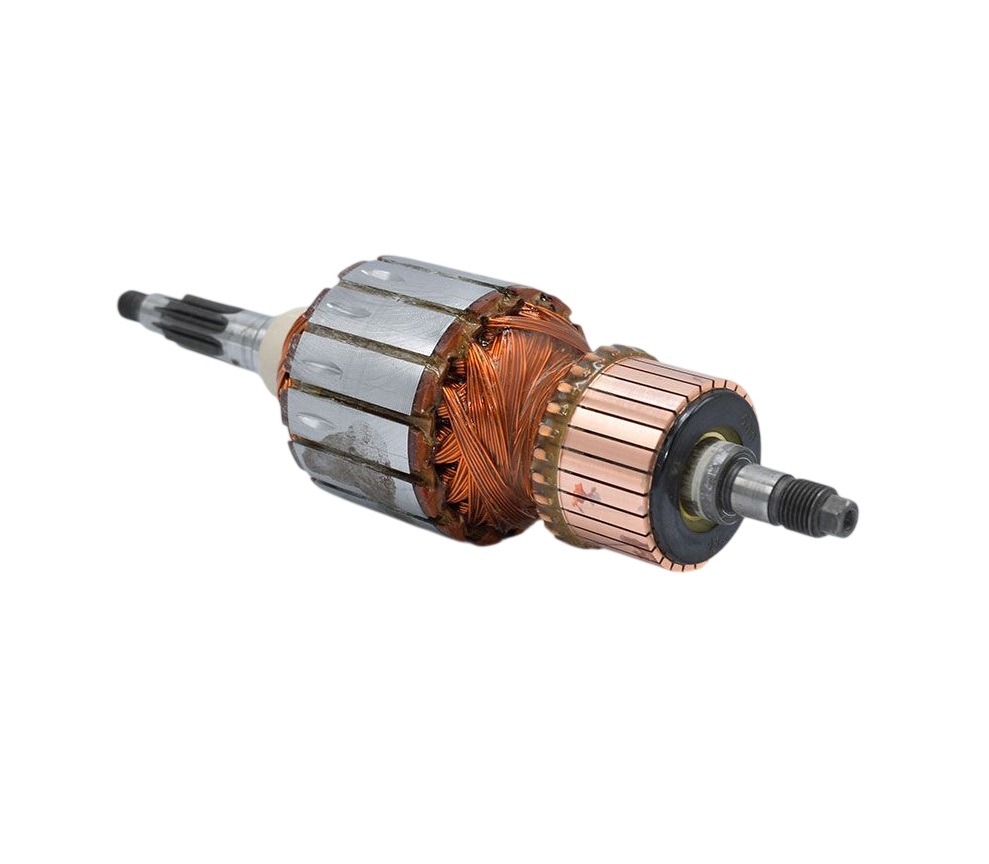

Bosch Power Tools 1614011121 Demolition Hammer Armature

The Bosch Power Tools 1614011121 Demolition Hammer Armature is a core rotating electrical component in demolition hammer systems responsible for power transmission and motor efficiency. Common issues include uneven rotation, power loss, overheating, and worn commutator segments affecting hammer performance stability and output consistency during heavy-duty operation.

Common Symptoms:

• Loss of hammering power due to worn armature windings.

• Excessive sparking from damaged commutator surface.

• Overheating during continuous demolition work cycles.

• Irregular rotation causing motor vibration and noise.

• Complete tool failure due to armature burnout or open circuit.

Armature Overheating

Quick Check: Check ventilation flow and inspect armature for discoloration or burnt smell.

Fix Suggestion: Replace Bosch 1614011121 armature if windings are heat-damaged.

Prevention Tip: Avoid prolonged overload operation and ensure clean cooling vents.

Excessive Sparking at Brushes

Quick Check: Inspect brush contact area for uneven wear or pitting.

Fix Suggestion: Replace or resurface commutator along with installing new armature if needed.

Prevention Tip: Use compatible carbon brushes and avoid running worn brush sets.

Irregular Motor Rotation

Quick Check: Rotate armature manually to feel for binding or uneven resistance.

Fix Suggestion: Install new 1614011121 armature if shaft alignment or windings are faulty.

Prevention Tip: Prevent dust ingress and maintain periodic internal cleaning.

Power Drop During Operation

Quick Check: Test tool output under load for sudden torque reduction.

Fix Suggestion: Replace damaged armature and inspect field coil assembly.

Prevention Tip: Avoid continuous heavy-load demolition without cooling intervals.

Customer Experience: After replacing the Bosch 1614011121 armature, my demolition hammer regained smooth rotation and consistent impact strength, The old unit kept overheating, this replacement restored stable performance during long drilling sessions.
