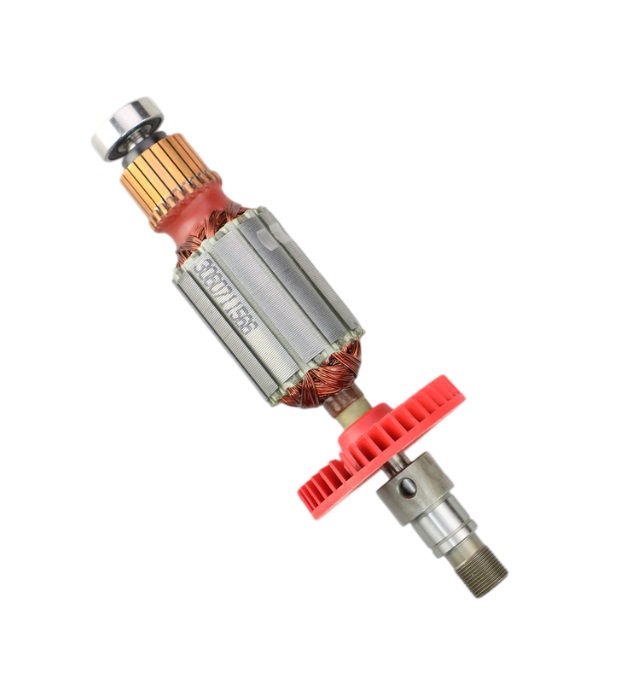

Bosch Power Tools 2610024566 Saw Armature SS560VSC 6

The Bosch Power Tools 2610024566 Saw Armature SS560VSC 6 is the primary rotating motor component that converts electrical energy into mechanical power. A properly functioning armature helps the saw deliver smooth operation, dependable torque, and consistent cutting performance.

Common Issues This Part Fixes:

• Motor operates with reduced power.

• Excessive sparking occurs inside the motor.

• Saw slows down under normal cutting load.

• Motor produces unusual humming or grinding sounds.

• Inconsistent motor speed affects cutting performance.

Motor Operates with Reduced Power

Quick Check: Run the saw under a light cutting load and observe whether the motor maintains its normal operating speed.

Fix Suggestion: Examine the armature windings and commutator for signs of wear, overheating, or electrical damage that may reduce motor output.

Prevention Tip: Avoid prolonged operation under heavy loads that can overheat the motor.

Excessive Sparking Occurs Inside the Motor

Quick Check: Look through the motor ventilation openings while the saw is running for abnormal sparking.

Fix Suggestion: Inspect the commutator surface and brush contact to determine whether the armature is functioning correctly.

Prevention Tip: Check motor brushes periodically and service them before excessive wear affects the armature.

Saw Slows Down Under Normal Cutting Load

Quick Check: Make a test cut using the appropriate blade and monitor whether the motor loses speed unexpectedly.

Fix Suggestion: Verify that the armature rotates freely and install a compatible armature if testing confirms internal electrical failure.

Prevention Tip: Use sharp, properly matched blades to reduce unnecessary motor strain.

Motor Produces Unusual Humming or Grinding Sounds

Quick Check: Listen for abnormal noises during startup and while the saw is operating at full speed.

Fix Suggestion: Review the armature and surrounding motor components for signs of wear or interference that could affect smooth rotation.

Prevention Tip: Keep the motor vents clean to promote proper airflow and cooling.

Customer Experience: A customer shared that the Bosch Power Tools 2610024566 Saw Armature SS560VSC 6 restored full motor power, reduced excessive sparking, and made the saw operate much more smoothly than before.
