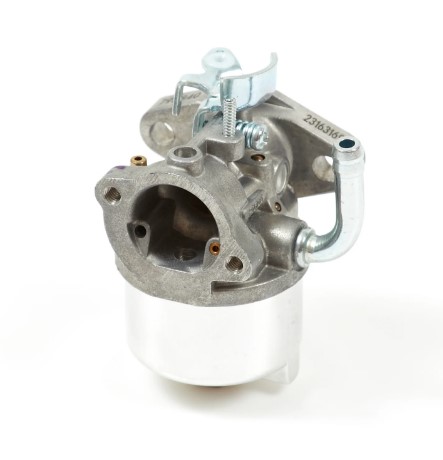

Briggs & Stratton 594015 Carburetor

The Briggs & Stratton 594015 Carburetor issues may involve fuel delivery problems, starting difficulties, uneven operation, and adjustment concerns. This guide covers common checks and solutions for this carburetor assembly.

Common Issues:

• Main jet restriction reduces fuel delivery.

• Idle circuit blockage causes rough idle.

• Float sticks inside the carburetor bowl.

• Needle valve allows fuel to overflow.

• Choke plate sticks during startup.

Main Jet Restriction

Quick Check: Inspect the main jet for varnish, dirt, or fuel residue restricting the normal flow of gasoline through the carburetor.

Fix Suggestion: Clean the main jet with carburetor cleaner and compressed air to restore proper fuel metering without damaging the opening.

Prevention Tip: Use fresh fuel and avoid storing gasoline in the mower for extended periods to reduce deposit formation.

Idle Circuit Blockage

Quick Check: Check the idle passage for debris that interrupts fuel delivery while the engine operates at lower speeds.

Fix Suggestion: Flush the idle circuit thoroughly and remove accumulated deposits from the internal fuel passages.

Prevention Tip: Operate the mower regularly and avoid allowing fuel to evaporate inside the carburetor during storage.

Float Sticks Inside the Carburetor Bowl

Quick Check: Remove the float bowl and verify the float moves freely without binding or contacting the bowl walls.

Fix Suggestion: Clean the float hinge and bowl area, then confirm the float moves smoothly through its full range.

Prevention Tip: Keep the fuel tank clean and replace contaminated fuel before it reaches the carburetor.

Needle Valve Allows Fuel to Overflow

Quick Check: Inspect the needle valve and seat for dirt or wear preventing the valve from sealing correctly.

Fix Suggestion: Clean the valve and seat carefully, then verify the float closes the fuel inlet properly during operation.

Prevention Tip: Install a clean fuel filter and inspect it regularly to reduce contaminants entering the carburetor.

Customer Experience: My mower developed an uneven idle after sitting through the winter. Cleaning the carburetor's idle circuit and float assembly restored smooth operation on the first start.
