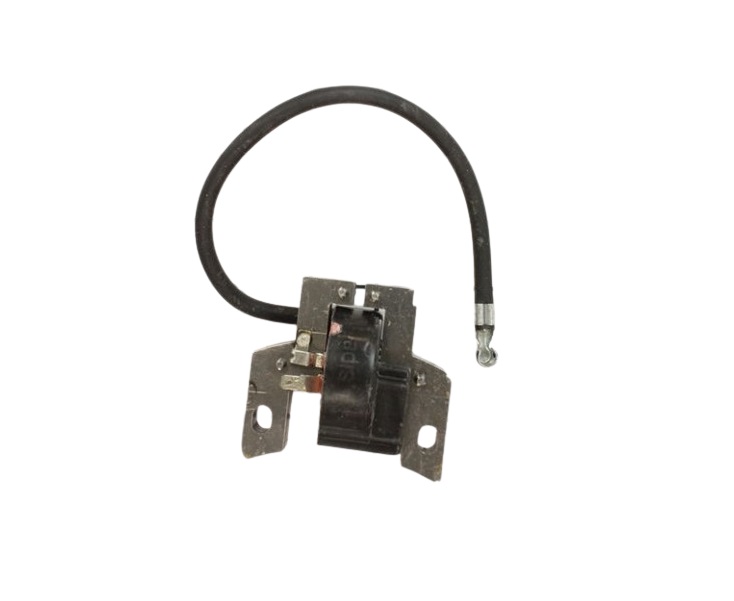

BRIGGS & STRATTON 595291 Engine Magneto Armature

Product Overview:

Generates the electrical energy required by the engine's ignition system to produce the spark needed for combustion. The BRIGGS & STRATTON 595291 Engine Magneto Armature works with the rotating flywheel magnet assembly to induce electrical energy within its windings. This electrical output is supplied to the ignition circuit, supporting spark generation during the engine's operating cycle. The armature's mounting position places its windings within the magnetic field produced by the rotating flywheel.

Magnetic Field Interaction:

The armature operates through interaction with the changing magnetic field created by the rotating flywheel. As the magnetic field passes across the armature core and windings, changes in magnetic flux induce electrical energy. The effectiveness of this process depends on the armature's position, winding condition, and interaction with the flywheel's magnetic field.

Armature Positioning:

Maintains the required position beside the rotating flywheel so the magnetic field can interact effectively with the armature. Correct mounting keeps the armature aligned with the flywheel's magnetic area and preserves the intended operating clearance. Incorrect positioning can reduce magnetic interaction and affect ignition performance.

Replacement Guidelines:

Replace the Engine Magneto Armature if it is damaged, burned, corroded, cracked, or no longer provides reliable ignition performance. The part number 595291 and engine magneto armature configuration should be verified before replacement to ensure the correct armature is selected. Replace the magneto armature if deterioration affects ignition generation, electrical continuity, mounting position, or normal engine operation.

Common Failure Symptoms:

• Engine is difficult to start or does not start.
• Ignition spark is absent or inconsistent.
• Engine operation becomes intermittent.
• Electrical connections show visible damage.
• Armature windings show physical deterioration.
• Mounting areas are damaged or improperly positioned.

Equipment Compatibility:

The Briggs & Stratton 595291 Engine Magneto Armature is intended for compatible Briggs & Stratton engine equipment requiring the specified magneto armature configuration. Compatibility should be confirmed by matching part number 595291, the complete engine model information, and applicable parts documentation before purchase. Verify the armature configuration, mounting arrangement, ignition system requirements, and engine specifications to ensure proper fit, electrical integration, and normal engine operation.

The Briggs & Stratton 595291 Engine Magneto Armature supplies the electrical energy required for spark generation. Wear, damage, or connection issues may prevent proper ignition performance.

This part fixes the following symptoms:

• No spark from ignition system.

• Engine cranks but will not start.

• Weak ignition performance during startup.

• Magneto armature electrical failure.

• Engine stops due to spark loss.

No Spark Output

Quick Check: Inspect the magneto armature and ignition wiring for visible damage or loose connections.

Fix Suggestion: Clean connection points and verify proper contact between ignition system components.

Prevention Tip: Keep ignition components clean and protected from moisture buildup.

Engine Starting Failure

Quick Check: Check spark availability and inspect the magneto armature condition for wear.

Fix Suggestion: Verify armature alignment and correct any loose ignition connections.

Prevention Tip: Inspect ignition components before seasonal mower operation.

Intermittent Spark Issues

Quick Check: Examine wiring connections and magneto armature surfaces for corrosion or damage.

Fix Suggestion: Secure loose connections and clean affected ignition contact areas.

Prevention Tip: Avoid storing mowers in damp environments.

Damaged Armature Coil

Quick Check: Inspect the magneto armature for cracks, burns, or electrical damage.

Fix Suggestion: Replace the armature only when internal electrical failure affects spark production.

Prevention Tip: Handle ignition components carefully during maintenance procedures.

Customer Experience: The 595291 Engine Magneto Armature corrected the inconsistent spark issue and improved the mower’s starting performance after installation.

• What is the Briggs & Stratton 595291 magneto armature used for?

  It generates electrical energy for the engine's ignition system through interaction with the rotating flywheel's magnetic field.

• How should the Briggs & Stratton 595291 Engine Magneto Armature be maintained?

  Inspect the magneto armature regularly for corrosion, physical damage, or excessive wear, and keep the surrounding ignition area clean to support proper ignition system operation.

• How does the flywheel interact with the magneto armature?

  The flywheel contains the rotating magnetic field that passes the stationary armature, creating the magnetic flux changes needed to generate electrical energy.

• When should the Briggs & Stratton 595291 Engine Magneto Armature be replaced?

  The magneto armature should be replaced when it is damaged, excessively worn, or no longer provides proper ignition performance after related wiring and ignition components have been checked..

• What are common signs of a faulty magneto armature?

  Difficult starting, no spark, inconsistent ignition, intermittent engine operation, or visible damage to the armature or its electrical connections can indicate a problem.
