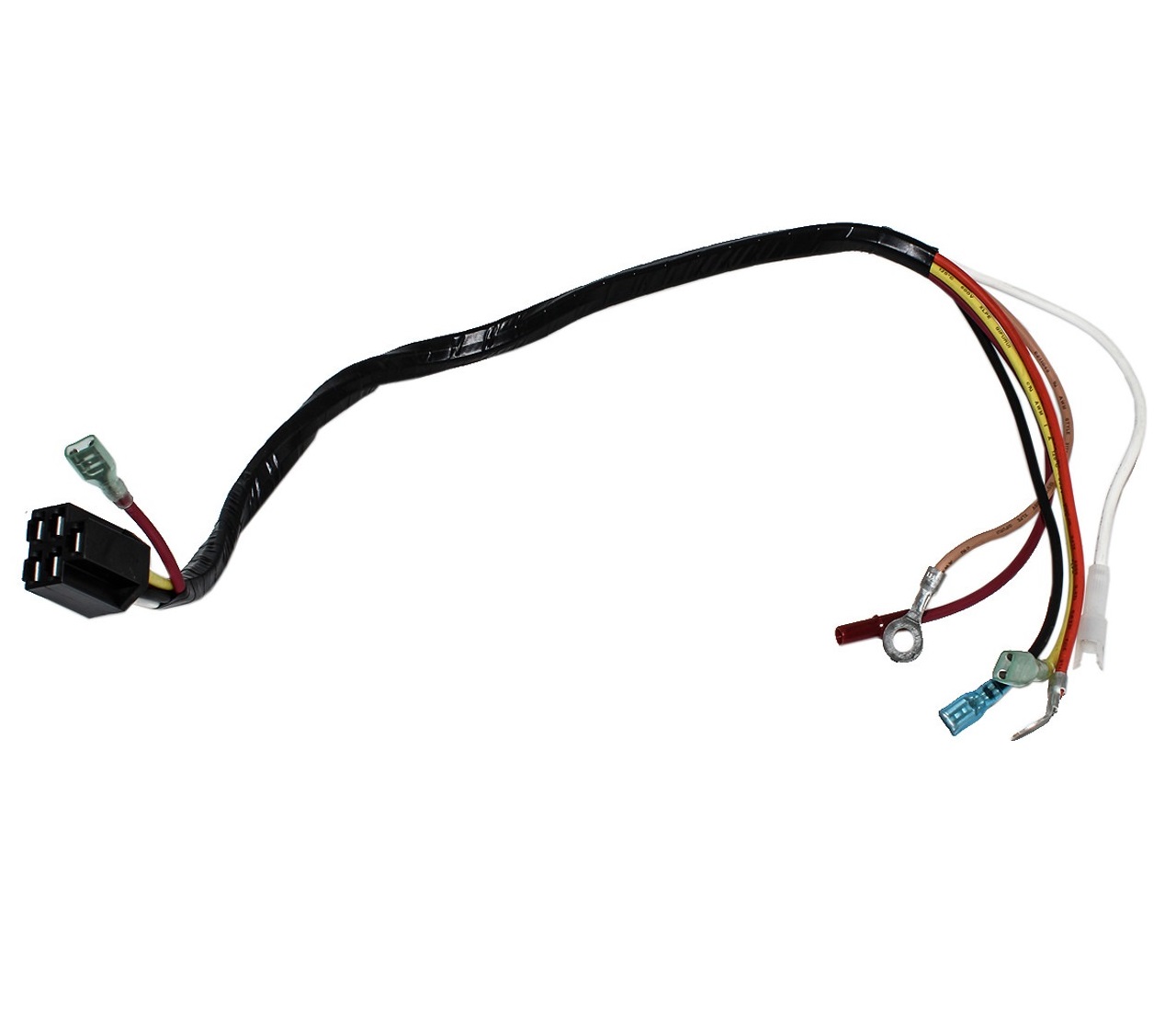

BRIGGS & STRATTON 797457 Engine Wiring Harness

The Briggs & Stratton 797457 Engine Wiring Harness regulates electrical signal distribution between the ignition, charging, and control circuits of the system. It is positioned within the unit assembly frame and routed along the crankcase area, connecting to the ignition coil, starter solenoid, and voltage regulator through keyed terminals and insulated leads. The harness configuration ensures correct polarity alignment and stable circuit continuity across the electrical network. By maintaining organized signal routing and consistent connectivity, it supports controlled ignition timing, charging regulation, and electrical coordination during start-up and shutdown, ensuring operational cycles.
