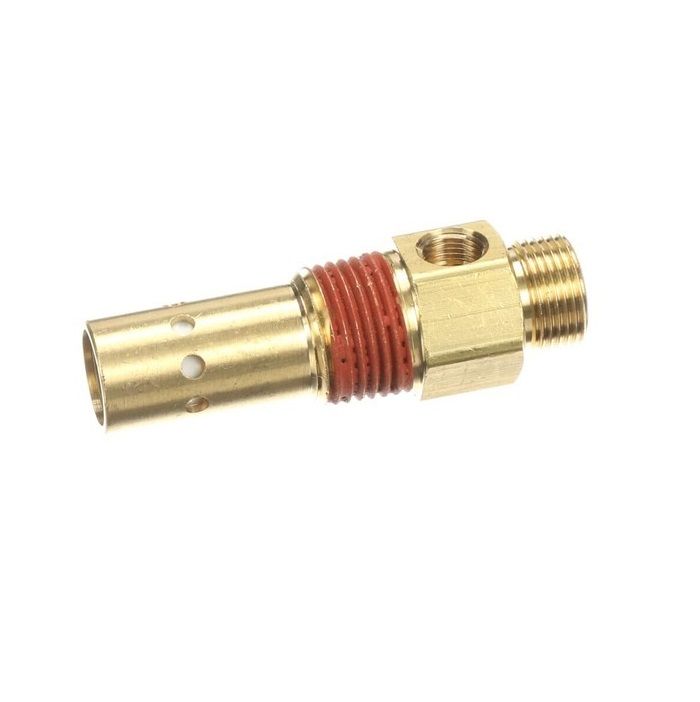

Campbell Hausfeld CV221502SJ Air Compressor Check Valve

The Campbell Hausfeld CV221502SJ Air Compressor Check Valve is responsible for one-way airflow control between the pump and the air tank. When this valve begins to fail, the compressor system quickly loses efficiency, pressure stability, and safe shutdown performance.

Common Symptoms Related to this Part:

• Air leaks back from tank into pump after shutdown.

• Compressor motor struggles to restart or hums under load.

• Tank pressure drops immediately after switching off.

• Slow or inconsistent pressure build-up.

• Noticeable air escaping from valve fitting area.

Air Backflow Into Pump Assembly

Quick Check: Shut off the compressor and listen for reverse airflow near the pump head.

Fix Suggestion: Inspect the CV221502SJ valve for internal debris or worn sealing disc, Replace the check valve if it fails to fully close under tank pressure.

Prevention Tip: Keep intake air filters clean to reduce contamination entering the valve system.

Compressor Hard Starting or Electrical Strain

Quick Check: Observe if the motor struggles or trips breaker during restart cycles.

Fix Suggestion: Check if trapped pressure is not releasing due to a stuck CV221502SJ valve, Replace the valve if the unloader passage is blocked or restricted.

Prevention Tip: Ensure proper unloader line function during regular maintenance checks.

Rapid Tank Pressure Loss After Shutdown

Quick Check: Monitor tank gauge immediately after compressor stops running.

Fix Suggestion: Inspect valve seat and spring inside the CV221502SJ for wear or deformation, Replace if sealing integrity is compromised even slightly.

Prevention Tip: Avoid moisture accumulation in the tank that can accelerate internal corrosion.

Air Leakage at Valve Connection Point

Quick Check: Apply soapy water around valve threads and fittings during operation.

Fix Suggestion: Reseat the CV221502SJ valve and ensure proper thread sealing (PTFE tape or gasket), Replace cracked fittings or hardened seals if leaks persist.

Prevention Tip: Do not overtighten fittings, which can distort valve housing threads.

Irregular Pressure Build-Up or Cycling

Quick Check: Observe fluctuating pressure gauge readings during compression cycle.

Fix Suggestion: Clean or replace the check valve if partial sticking is restricting airflow, Verify proper alignment between valve inlet and discharge line.

Prevention Tip: Schedule periodic valve inspection during routine compressor servicing.

Customer Experience: One owner mentioned the compressor finally stopped leaking air after shutdown once the Campbell Hausfeld CV221502SJ Check Valve was replaced. Another user noticed startup cycles became noticeably smoother without the previous pressure kickback.
