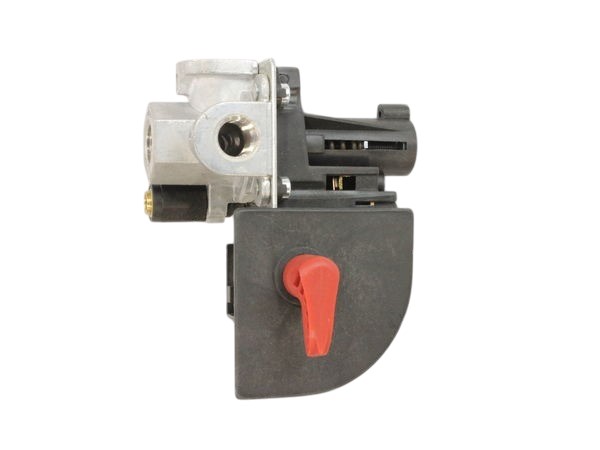

Campbell Hausfeld CW211000AV Air Compressor Pressure Switch

The Campbell Hausfeld CW211000AV Air Compressor Pressure Switch is responsible for automatically controlling compressor start/stop cycles by sensing tank pressure. When it begins to fail, compressor performance becomes unstable or unsafe.

Common Issues You May Notice:

• Compressor not starting when tank pressure drops.

• Unit running past cut-out pressure without stopping.

• Erratic or inconsistent cut-in pressure behavior.

• Frequent short cycling during normal operation.

• Switch clicking but motor not responding.

Compressor Does Not Start at Low Tank Pressure

Quick Check: Verify tank pressure is below normal cut-in range (around 100 PSI operation range).

Fix Suggestion: Inspect internal contacts in the CW211000AV switch for burn marks or weak spring tension, Replace switch if contacts are worn or fused.

Prevention Tip: Avoid moisture exposure near the pressure switch housing to reduce corrosion.

Compressor Fails to Shut Off at Cut-Out Pressure

Quick Check: Monitor tank gauge to confirm pressure exceeds safe cutoff level.

Fix Suggestion: Adjust pressure settings if available, or replace the pressure sensing diaphragm inside the switch, If unresolved, replace the CW211000AV unit.

Prevention Tip: Do not override factory pressure limits during adjustment.

Inconsistent Start/Stop Cycling

Quick Check: Observe if compressor cycles unpredictably under steady air demand.

Fix Suggestion: Check for loose wiring at terminal connections or weak internal switch spring mechanism, Tighten wiring or replace the switch if mechanical fatigue is present.

Prevention Tip: Periodically inspect wiring connections for vibration loosening.

Compressor Hums but Won’t Start

Quick Check: Listen for motor hum without engagement at startup.

Fix Suggestion: Confirm the unloader valve is releasing pressure when the CW211000AV switch shuts off, Replace switch if internal unloader function is not triggering.

Prevention Tip: Ensure proper unloader line connection during installation.

Customer Experience: The original switch started causing irregular shutoff problems. After installing the CW211000AV, the compressor returned to normal pressure control and reliable performance.
