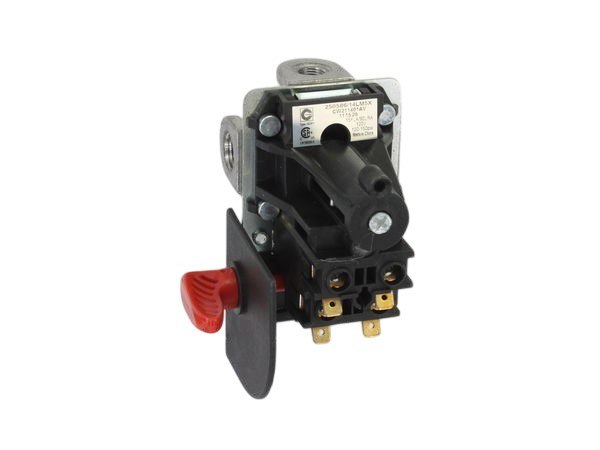

Campbell Hausfeld CW211401AV Air Compressor No Unloader Valve Pressure Switch 120/150 PSI

SKU: CW211401AV CW211401AV Brand: Availability:
In Stock
(0)

$87.34 Price reduced from $90.95
Save $3.61


Have a Question? +1 (866) 963-0907

Description

The Campbell Hausfeld CW211401AV No Unloader Valve Pressure Switch is a part that automatically controls the compressor motor by closing the electrical circuit when tank pressure drops to 120 PSI and opening it when pressure reaches 150 PSI. Designed without an unloader valve, it regulates the compressor's operating cycle based on preset pressure levels. This part is attached to compatible air compressor tanks, where it connects to the air system and electrical circuit to manage motor operation and maintain the specified pressure range.

Dimensions:

  • Weight: 2 lbs

The Campbell Hausfeld CW211401AV Air Compressor No Unloader Valve Pressure Switch (120/150 PSI) manages automatic motor control based on tank pressure, while being designed without an integrated unloader valve. It ensures cut-in around 120 PSI and cut-out around 150 PSI for compatible compressor systems.

Common Symptoms Linked to CW211401AV Pressure Switch:

• Compressor does not shut off at 150 PSI cutoff

• Unit fails to restart when pressure drops below 120 PSI range

• Motor hums but does not engage on start cycle

• Frequent tripping or erratic cycling behavior

• No audible “click” from switch during pressure changes

Compressor Not Shutting Off at Cut-Out Pressure

Quick Check: Monitor tank gauge to confirm pressure exceeds normal 150 PSI cut-out point.

Fix Suggestion: Replace the CW211401AV switch if internal diaphragm or contact points are stuck in closed position.

Prevention Tip: Keep the pressure sensing port clean and free from moisture buildup.

Motor Hums but Does Not Start

Quick Check: Listen for switch click while verifying voltage at motor terminals.

Fix Suggestion: Tighten wiring connections or replace switch if internal contacts are burned or pitted.

Prevention Tip: Ensure proper power supply and avoid undersized extension cords.

Rapid Short Cycling During Operation

Quick Check: Observe frequent on/off switching in short intervals.

Fix Suggestion: Replace CW211401AV switch if pressure sensing is unstable or inconsistent.

Prevention Tip: Inspect for air leaks in system that cause false pressure drops.

No Response or Delayed Switching Action

Quick Check: Check for absence of audible click during pressure changes.

Fix Suggestion: Replace switch if internal mechanism is seized or worn out.

Prevention Tip: Mount switch securely to minimize vibration-related wear.

Customer Experience: I needed a pressure switch without an unloader valve for my compressor setup. The CW211401AV matched the original configuration and brought the compressor back to reliable performance.

Disclaimer: Troubleshooting guidance provided for reference only.
  • Is the Campbell Hausfeld CW211401AV Pressure Switch compatible with all air compressors?

    No. It is designed specifically for Campbell Hausfeld compressor systems that match the 120/150 PSI operating range and do not require an integrated unloader valve configuration.

  • Why is my compressor still not shutting off after replacing the pressure switch?

    If the compressor continues running, the issue may be related to a faulty tank check valve, leaking air line, or incorrect pressure sensing rather than the switch itself.

  • Can I replace the Campbell Hausfeld CW211401AV Pressure Switch myself?

    It can be replaced by safely disconnecting power, labeling wiring connections, removing the old switch, and installing the new unit in the same configuration.

  • What is the function of the Air Compressor No Unloader Valve Pressure Switch 120/150 PSI?

    It automatically controls compressor motor operation by turning it on and off based on tank pressure levels, maintaining safe operating limits between cut-in and cut-out pressures without an integrated unloader valve."
