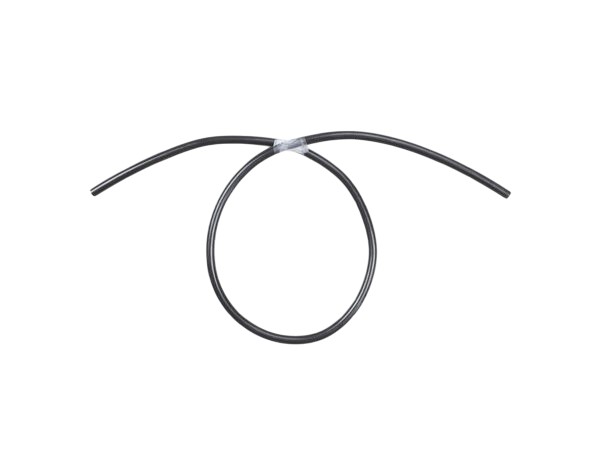

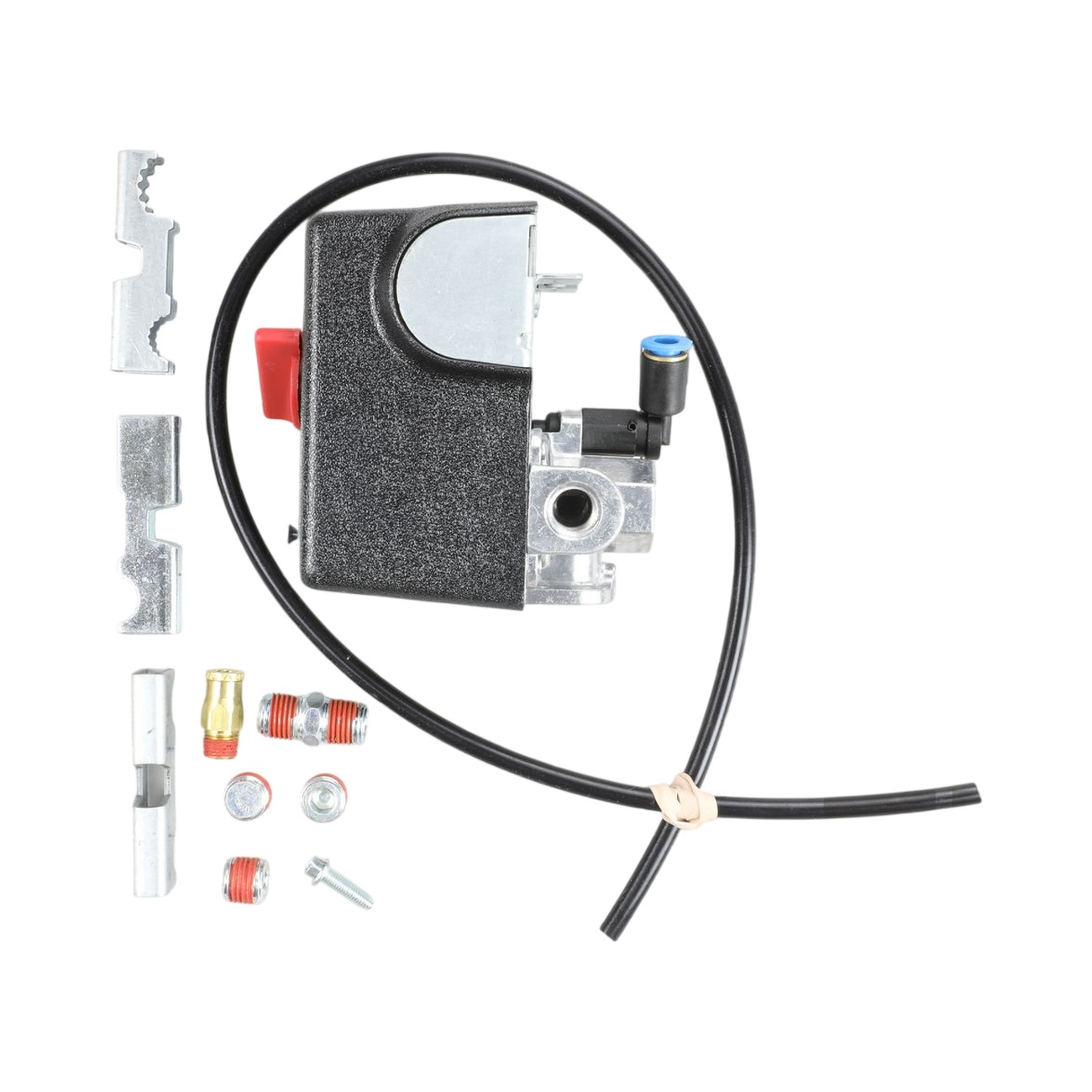

Campbell Hausfeld CW212600SJ Air Compressor Pressure Switch Kit

The Campbell Hausfeld CW212600SJ Air Compressor Pressure Switch Kit is responsible for automatically controlling compressor cut-in and cut-out pressure. It manages when the motor starts and stops based on tank pressure levels, making it essential for safe and stable operation.

Common symptoms associated with this pressure switch kit include:

• Compressor not turning automatically

• Motor running continuously without shutting off

• Inconsistent cut-in or cut-out pressure levels

• Clicking sound from switch without motor activation

• Air tank over-pressurizing or failing to build pressure

Compressor Not Starting Automatically

Quick Check: Check if tank pressure is below cut-in level and the compressor still does not activate.

Fix Suggestion: Replace the CW212600SJ pressure switch kit if internal contacts are worn or not engaging properly.

Prevention Tip: Avoid frequent short cycling, which increases wear on switch contacts over time.

Incorrect Cut-In or Cut-Out Pressure

Quick Check: Compare actual tank pressure with switch activation behavior using a gauge.

Fix Suggestion: Replace or recalibrate the pressure switch kit if pressure thresholds are inconsistent or unstable.

Prevention Tip: Periodically inspect switch settings and avoid tampering with factory calibration unless necessary.

Clicking Sound but No Motor Activation

Quick Check: Listen for switch engagement while the motor fails to start.

Fix Suggestion: Replace the CW212600SJ switch if electrical contacts are burnt or unable to transfer power to the motor circuit.

Prevention Tip: Ensure proper electrical load and avoid using undersized extension cords that strain the switch contacts.

Compressor Over-Pressurizing

Quick Check: Monitor tank pressure to ensure it does not exceed safe limits.

Fix Suggestion: Replace the faulty pressure switch immediately if the cut-out function fails to disengage the motor.

Prevention Tip: Never bypass safety controls or pressure relief mechanisms during operation.

Customer Experience: I was dealing with inconsistent pressure control and frequent cycling. After installing the CW212600SJ kit, the compressor maintained pressure much more consistently.

• Is the Campbell Hausfeld CW212600SJ Pressure Switch Kit compatible with all Campbell Hausfeld compressors?

  No. This pressure switch kit is designed for specific Campbell Hausfeld compressor models that match its electrical rating, mounting style, and pressure settings. Model verification is required before installation.

• Why does my compressor still not shut off after installing the CW212600SJ kit?

  If the compressor continues running, the issue may be related to incorrect wiring, a faulty unloader valve, or an air leak causing the switch to misread tank pressure.

• Can I replace the Campbell Hausfeld Air Compressor Pressure Switch Kit myself?

  It can typically be replaced by disconnecting power, removing the old switch, and reconnecting the electrical terminals and air line according to the original configuration. Proper safety precautions are essential.

• What is the function of the Air Compressor Pressure Switch Kit?

  This kit controls compressor operation by automatically turning the motor on and off based on tank pressure levels, ensuring safe pressure regulation and preventing over-pressurization or continuous running."
