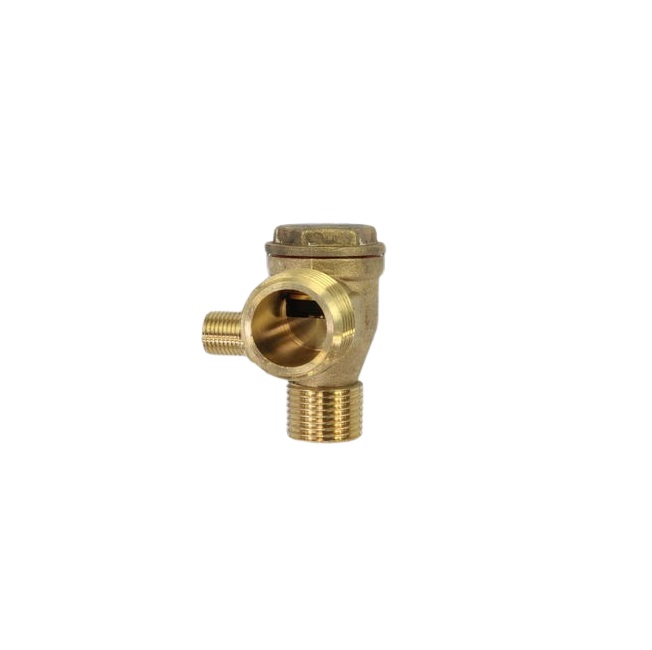

Campbell Hausfeld HL030501AV Air Compressor Check Valve

The HL030501AV check valve is responsible for controlling one-way airflow from the pump into the tank while preventing backflow after shutdown. When this part is worn, clogged, or stuck, compressor performance becomes unstable.

Common Issues Related to this Part:

• Air compressor tank loses pressure after shutdown

• Motor continuously runs without reaching cut-off pressure

• Hard restarting due to pressure backflow into pump head

• Slow or uneven tank filling

• Air leaks or hissing near pump-to-tank line

Tank Pressure Dropping After Compressor Stops

Quick Check: Turn off compressor and monitor tank pressure gauge over 10–15 minutes.

Fix Suggestion: Replace the HL030501AV check valve if internal sealing is worn or not closing fully.

Prevention Tip: Avoid moisture buildup in the tank by draining regularly to reduce internal corrosion on valve components.

Compressor Runs Continuously Without Shutting Off

Quick Check: Observe whether the unit keeps running past normal cut-off pressure.

Fix Suggestion: Inspect the check valve for debris or carbon buildup preventing proper closure and install a replacement if needed.

Prevention Tip: Install or maintain an inline air filter to reduce contamination reaching the valve.

Hard Starting or Strained Motor on Restart

Quick Check: Restart compressor after tank is already pressurized and listen for motor strain.

Fix Suggestion: Replace a stuck or leaking check valve that allows pressurized air to push back into the pump head.

Prevention Tip: Ensure unloader line and check valve work together correctly to relieve head pressure at shutdown.

Slow Tank Fill or Reduced Efficiency

Quick Check: Compare current fill time to normal operating baseline.

Fix Suggestion: Clean or replace check valve if internal flap is restricted, partially stuck, or carbon-fouled.

Prevention Tip: Keep compressor intake air clean and avoid running in dusty environments without filtration.

Customer Experience: Many users report that replacing a failing HL030501AV check valve restores normal cycling behavior, especially when compressors struggle to restart under pressure or lose stored air overnight. A common observation is that a fresh valve noticeably improves both startup smoothness and tank pressure retention.
