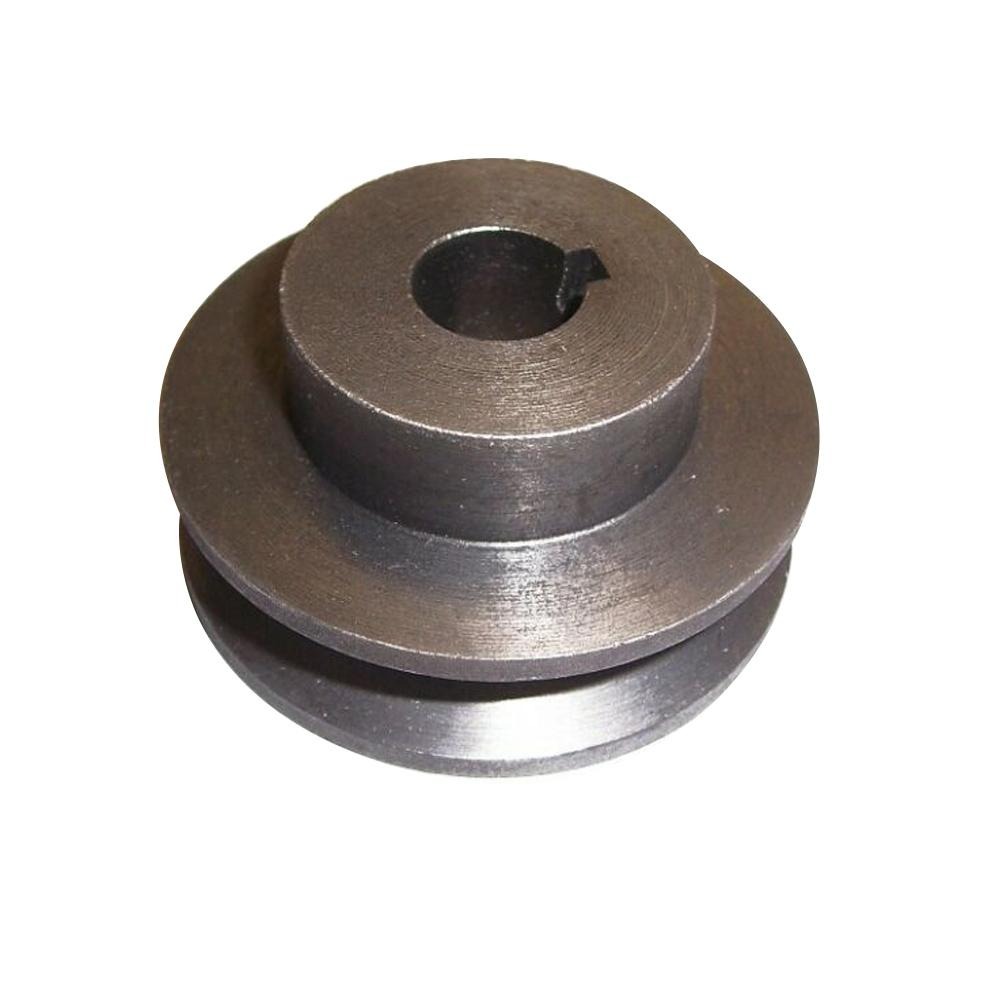

Campbell Hausfeld PU017001AV Air Compressor Motor Drive Pulley 3.45" OD X 7/8"

SKU: PU017001AV PU017001AV Brand: Availability:
In Stock
(0)

$85.00 Price reduced from $88.95
Save $3.95


Have a Question? +1 (866) 963-0907

Specifications:

Attribute Details
Brand Campbell Hausfeld
Part Number PU017001AV
Component Type Motor Drive Pulley
Application Air Compressor
Outside Diameter 3.45 inches
Bore Diameter 7/8 inch

Description

The Campbell Hausfeld PU017001AV Air Compressor Motor Drive Pulley is the part that connects the electric motor to the compressor flywheel by a belt mechanism. It has the right dimensions of 3.45 inches outside diameter and a 7/8 inch bore to fit perfectly for correct alignment with any compatible air compressor assembly. When in use, this pulley will work with the belt to ensure that there is steady movement, which will then enable the pump to compress air in an efficient manner. It will provide for smooth transmission of power, eliminate unnecessary wear on belts, and play a part in making the compressor operate reliably with consistent airflow.

Dimensions:

  • Weight: 5 lbs

Product Overview:

Transferring rotational power from the motor to the compressor pump, the Campbell Hausfeld PU017001AV Air Compressor Motor Drive Pulley is an OEM drive-system component designed to support belt-driven compressor operation. Its 3.45-inch outside diameter and 7/8-inch bore are key fitment measurements for matching the pulley to the motor shaft and belt arrangement. Proper pulley alignment helps maintain consistent power transmission and compressor performance.

Pulley Design Features:

Built for integration with a belt-driven compressor system, this motor drive pulley provides a rotating contact surface for the drive belt. Its dimensions determine the pulley size and shaft opening, making accurate measurement important when matching it to the original drive configuration.

Belt Drive Operation:

During operation, the pulley rotates with the motor shaft and transfers mechanical power through the drive belt to the compressor pump. The pulley diameter contributes to the drive ratio, influencing the pump's rotational speed in relation to motor speed. Correct belt positioning and pulley alignment support efficient power transfer and help reduce unnecessary drive-system vibration.

Replacement Guidelines:

Replacement of the Campbell Hausfeld PU017001AV Air Compressor Motor Drive Pulley 3.45" OD X 7/8" may be necessary if the pulley becomes cracked, bent, excessively worn, or unable to maintain proper belt alignment. A qualified technician should inspect the pulley, motor shaft, keyway, and drive belt to identify related damage.

Common Signs of Wear:

  • Drive belt slips during compressor operation.
  • Pulley produces excessive vibration while rotating.
  • Unusual squealing or rattling sounds come from the drive assembly.
  • Pulley develops visible cracks, chips, or deformation.
  • Belt tracking becomes uneven or repeatedly moves out of position.
  • Pulley bore or shaft connection becomes loose.
  • Compressor pump operates inconsistently due to interrupted belt power transmission.

Equipment Compatibility:

The Campbell Hausfeld PU017001AV Motor Drive Pulley is designed for specific belt-driven compressor configurations. Before purchasing, verify the compressor model and serial number against the manufacturer's parts diagram and confirm that the 3.45-inch outside diameter, 7/8-inch bore, and shaft connection match the original pulley.

The Campbell Hausfeld PU017001AV Motor Drive Pulley 3.45" OD X 7/8" is an OEM metal pulley designed for specific Campbell Hausfeld air compressor models. It mounts to the motor shaft and transfers rotational power to the flywheel and compressor pump through the drive belt.

Common Issues:

• Belt slipping during compressor startup or operation.

• Excessive vibration from motor assembly.

• Unusual squealing or grinding noise from pulley area.

• Compressor running slower than normal due to incorrect speed ratio.

• Pulley wobble or uneven rotation on motor shaft.

Belt Slippage on Startup

Quick Check: Inspect belt tension and surface wear on the 3.45" pulley groove.

Fix Suggestion: Adjust belt tension and ensure correct belt size alignment with pulley groove profile.

Prevention Tip: Regularly check belt tension after installation and during routine compressor maintenance.

Pulley Misalignment Causing Vibration

Quick Check: Observe whether the pulley sits straight on the 7/8" motor shaft during rotation.

Fix Suggestion: Re-seat the Campbell Hausfeld PU017001AV pulley and verify alignment with compressor flywheel.

Prevention Tip: Always torque set screws evenly to maintain proper shaft positioning.

Noise or Squealing from Drive System

Quick Check: Listen for high-pitch noise during motor engagement.

Fix Suggestion: Inspect belt condition and pulley groove wear; replace if glazing or uneven wear is present.

Prevention Tip: Keep pulley groove clean from oil, dust, and debris buildup.

Pulley Wobble on Motor Shaft

Quick Check: Manually rotate pulley and check for lateral movement on the 7/8" bore fit.

Fix Suggestion: Tighten set screw securely and confirm correct shaft diameter match.

Prevention Tip: Ensure shaft is free from scoring or rust before installation.

Customer Experience: After installing this motor drive pulley, the compressor finally ran smooth without shaking the whole bench.

Disclaimer: Troubleshooting guidance provided for reference only.
  • What is the purpose of the Campbell Hausfeld PU017001AV Motor Drive Pulley?

    The pulley transfers rotational power from the compressor motor to the pump through a drive belt. It helps maintain the mechanical connection required for compressor operation.

  • Why must the pulley bore match the motor shaft?

    The bore must fit the motor shaft correctly to maintain a secure connection and transfer rotational power without excessive movement.

  • What signs indicate damage to an air compressor drive pulley?

    Cracks, deformation, wobbling, excessive vibration, and a loose shaft connection can indicate pulley damage.

  • How can I maintain an air compressor motor drive pulley?

    Keep the pulley and surrounding drive area free from excessive dust and debris. Check belt condition, tension, and alignment according to the compressor manufacturer's recommendations.

  • What should I check besides pulley diameter when replacing PU017001AV?

    Check the 7/8-inch bore, motor shaft connection, and belt arrangement. These details help confirm that the replacement matches the original drive configuration.
