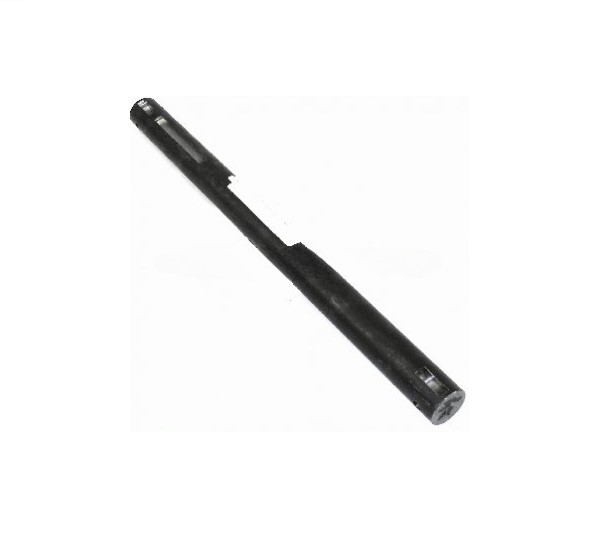

Classen C600003 Eccentric Shaft

Product Overview:

Converts continuous rotational motion into controlled reciprocating movement to support the cutting action of compatible sod cutters. The Classen C600003 Sod Cutter Eccentric Shaft is a drivetrain component that functions within the machine's power transmission system by transferring rotational input into the oscillating motion required for the blade drive mechanism. As part of the sod cutter assembly, it supports the mechanical movement needed for normal cutting operation.

Rotational Motion Conversion:

The eccentric shaft rotates with the drivetrain while its offset journal converts rotary motion into reciprocating movement. This mechanical action transfers motion to connected blade-drive components, allowing the cutting mechanism to move through its intended operating cycle. Working with the surrounding drivetrain, the shaft maintains the motion conversion required for continuous blade operation.

Drive Component Connection:

The eccentric shaft works within the connected drivetrain to transfer movement from the rotating power source toward the cutting mechanism. Its connection points correspond with the surrounding drive components and maintain the mechanical relationship required for the blade-drive assembly. The shaft's dimensions and interface configuration are designed for the intended sod cutter application.

Replacement Guidelines:

Replacing the Classen C600003 Sod Cutter Eccentric Shaft if it is bent, cracked, excessively worn, damaged, or shows abnormal wear on its rotating or mounting surfaces. Inspect the shaft, bearing areas, mounting points, and connected drive components for looseness, scoring, deformation, or excessive play. Replace the shaft if its condition affects proper movement, alignment, or consistent operation of the sod cutter mechanism.

Common Failure Symptoms:

• Reduced or inconsistent blade movement.
• Excessive vibration during operation.
• Abnormal mechanical noise from the drivetrain.
• Visible wear, cracks, or deformation on the shaft.
• Irregular movement of connected blade-drive components.

Equipment Compatibility:

Verify compatibility by confirming the sod cutter model, part number, drivetrain configuration, and manufacturer documentation before purchasing. The Classen C600003 Eccentric Shaft should be matched with the intended equipment application to ensure its dimensions and connection interfaces correspond with the original drivetrain.

• What does the Classen C600003 eccentric shaft do?

  It works within the sod cutter's drive assembly to transfer rotational movement to the cutting mechanism.

• How does the eccentric shaft support sod cutting?

  Its eccentric movement helps convert rotational motion into the mechanical movement required for the cutter blade assembly.

• What are common signs of a worn eccentric shaft?

  Excessive vibration, unusual mechanical noise, inconsistent blade movement, or visible shaft wear may indicate deterioration.

• Can a damaged eccentric shaft affect sod cutter performance?

  Yes. Wear or damage can interfere with the cutting mechanism and may result in inconsistent cutting movement.

• How does the C600003 eccentric shaft work with the drive assembly?

  It works with the eccentric hubs and related drive components to transmit controlled mechanical movement to the sod cutter's cutting system.
