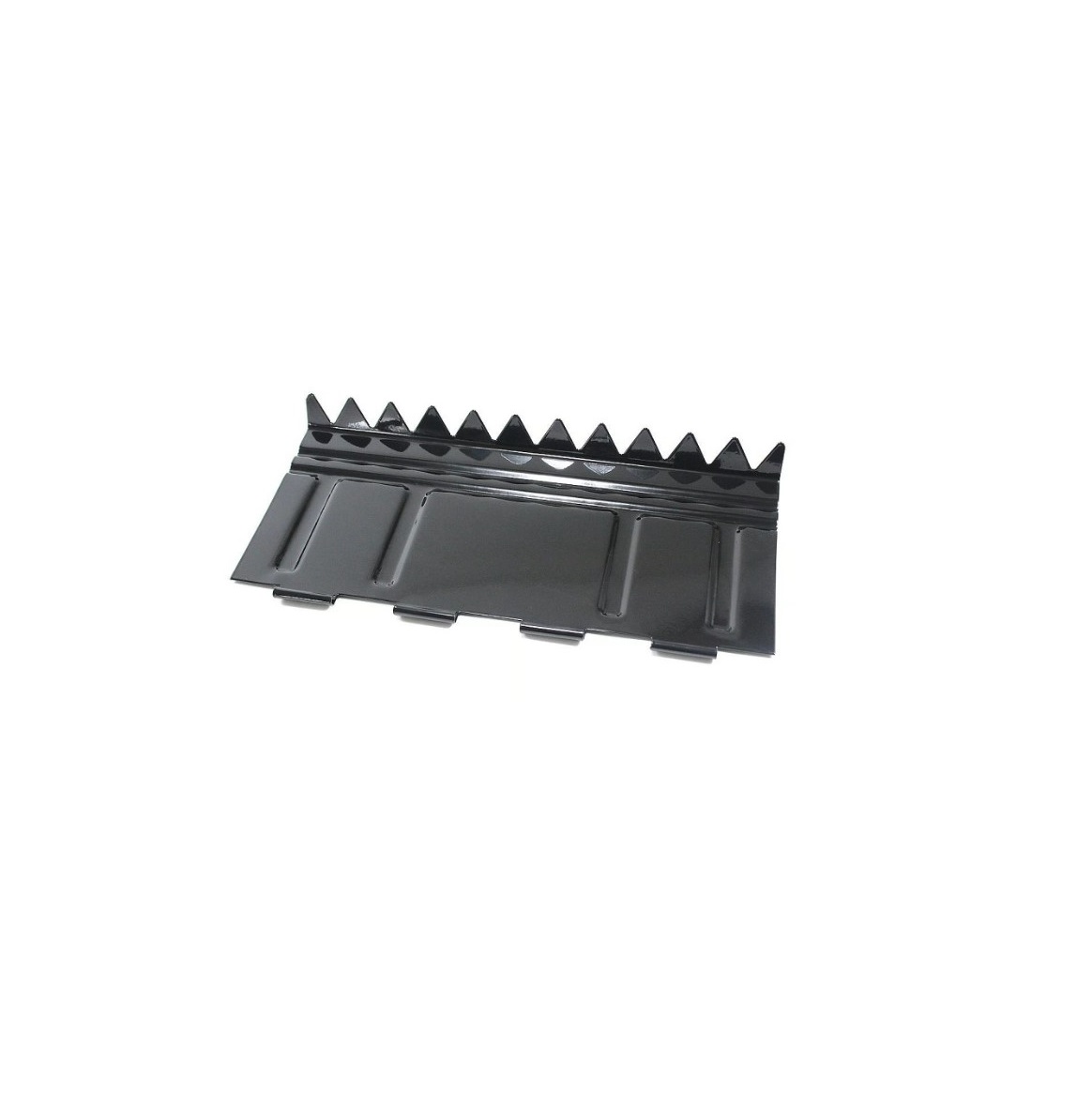

Craftsman 786-0113A-0691 Tiller Rear Tine Shield

The Craftsman 786-0113A-0691 Tiller Rear Tine Shield helps protect the rear tine area from thrown soil and debris while supporting controlled tilling operation.

This part fixes the following symptoms:

• Rear shield becomes cracked or bent.

• Soil and debris scatter excessively.

• Shield mounting becomes loose.

• Shield rubs against moving components.

• Shield coverage becomes uneven.

Cracked Rear Shield

Quick Check: Inspect the rear tine shield for cracks, bends, holes, or other visible structural damage.

Fix Suggestion: Secure minor mounting concerns or replace the shield when damage prevents proper protection.

Prevention Tip: Inspect the rear shield after contact with rocks, roots, or other obstacles.

Excessive Debris Scattering

Quick Check: Examine shield positioning and coverage around the rear tine area for gaps or displacement.

Fix Suggestion: Correct the shield position and secure applicable mounting hardware.

Prevention Tip: Check shield alignment before tilling in hard or debris-filled soil.

Loose Shield Mounting

Quick Check: Inspect mounting points for looseness, missing hardware, or movement during tiller operation.

Fix Suggestion: Tighten appropriate mounting hardware according to the applicable tiller service specifications.

Prevention Tip: Include shield mounting checks during routine tine and chassis maintenance.

Shield Contact

Quick Check: Inspect the clearance between the rear shield and rotating tine components for interference.

Fix Suggestion: Correct improper shield positioning that allows contact with moving tine components.

Prevention Tip: Verify shield clearance whenever the tine area receives service or adjustment.

Customer Experience: A customer reported better debris control after securing the rear shield properly on the Craftsman 786-0113A-0691 tiller.
