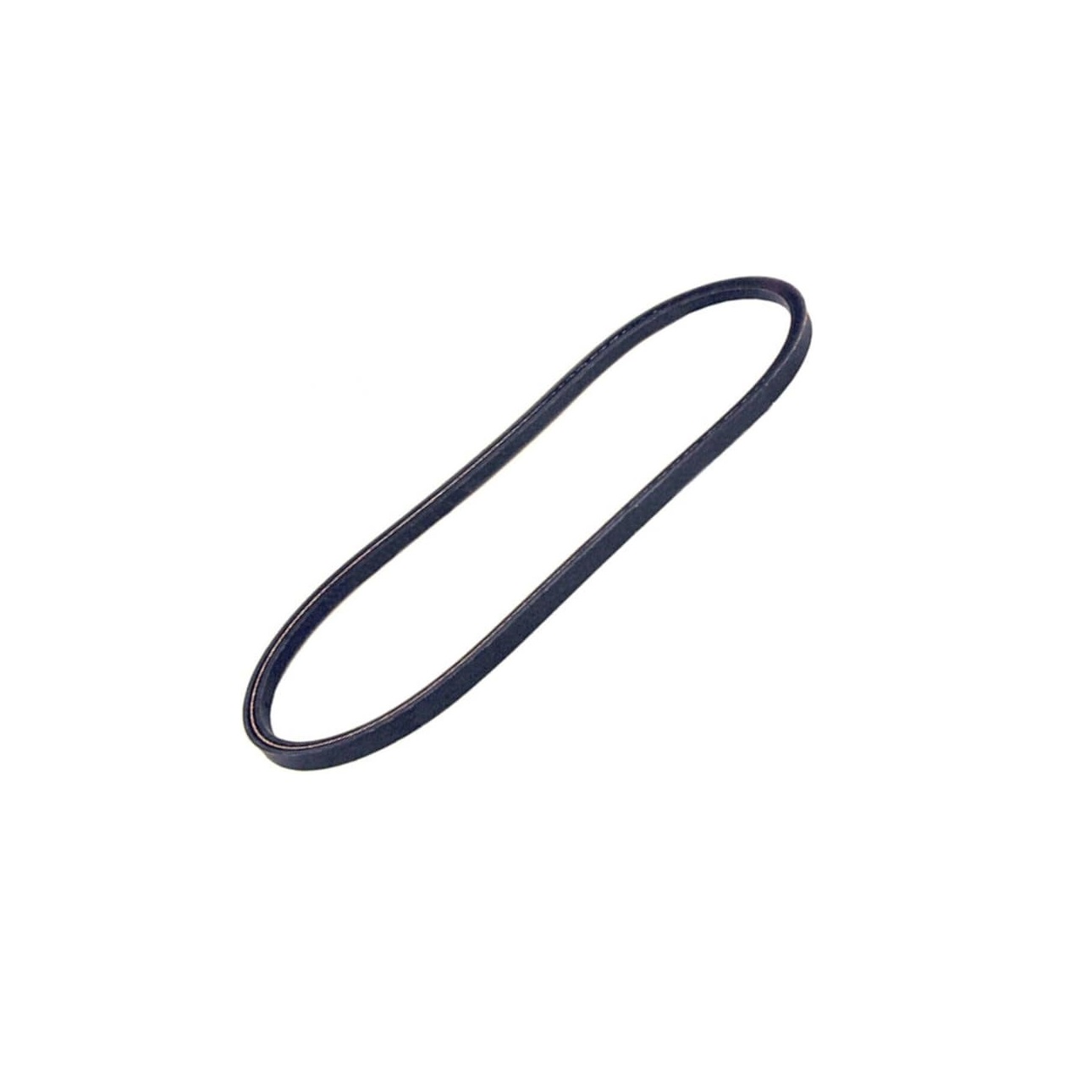

Craftsman 954-04094 Tiller Ground Drive Belt

SKU: 954-04094 954-04094 Brand:
CRAFTSMAN
Availability:
In Stock
(0)
$39.18
Have a Question? +1 (866) 963-0907

Description

The Craftsman 954-04094 Ground Drive Belt is a power transmission part that carries power from the engine to the drive system of the tiller it is compatible with the appliance. It fits around the pulleys attached to the engine and the transmission so that friction is created between them for the rotational force to be carried through the drive mechanism to the wheels of the tiller. Positioned inside the assembly of the drive, it gets into contact when the control for driving is put on and gets out of contact when released.

Dimensions:

  • Weight: 0.18 lbs

The Craftsman 954-04094 Tiller Ground Drive Belt transfers engine power through the tiller's ground-drive system, helping provide consistent movement during soil preparation.

Common Issues List:

• Tiller ground drive slips.

• Tiller moves inconsistently.

• Belt squeals during operation.

• Ground-drive power feels weak.

• Belt shows excessive wear.

Ground Drive Slips

Quick Check: Inspect the 954-04094 belt for looseness, glazing, contamination, or improper pulley seating.

Fix Suggestion: Check belt tension and clean debris from the belt and pulley area.

Prevention Tip: Keep oil, dirt, and plant material away from the ground-drive belt.

Inconsistent Tiller Movement

Quick Check: Examine the belt for uneven wear, stretching, or incorrect routing.

Fix Suggestion: Verify the belt follows the correct drive path and sits properly on each pulley.

Prevention Tip: Inspect belt routing whenever the ground-drive system is serviced.

Belt Squeals During Operation

Quick Check: Look for belt glazing, pulley contamination, or misalignment within the drive system.

Fix Suggestion: Clean accessible pulley surfaces and confirm proper belt alignment.

Prevention Tip: Check the belt and pulleys periodically for contamination or alignment problems.

Weak Ground-Drive Power

Quick Check: Check for excessive belt slack or visible deterioration affecting power transfer.

Fix Suggestion: Inspect the drive system for tension or alignment issues that may reduce belt grip.

Prevention Tip: Perform routine belt inspections before demanding tilling work.

Excessive Belt Wear

Quick Check: Examine the belt for cracks, fraying, glazing, or damaged edges.

Fix Suggestion: Replace the belt when deterioration is severe enough to affect reliable power transfer.

Prevention Tip: Keep the ground-drive area clean and avoid operating with damaged belt components.

Customer Experience: A customer noticed that the tiller moved more smoothly after replacing the worn ground drive belt and checking that it was properly seated on the pulleys.

Disclaimer: Troubleshooting guidance provided for reference only.
