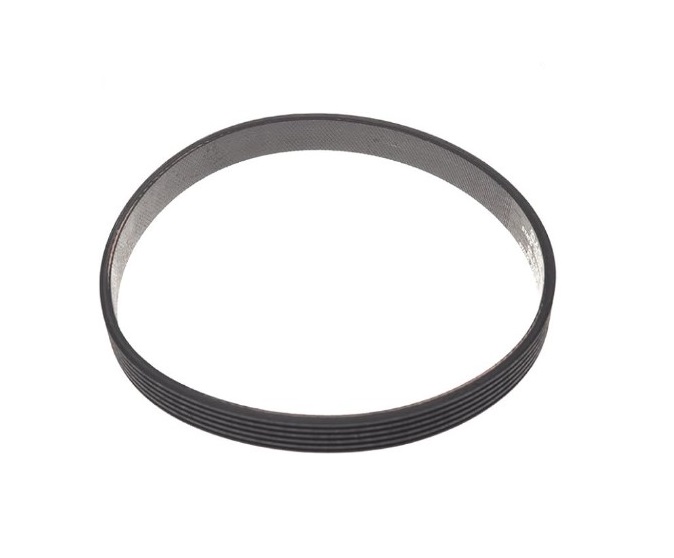

DELTA 22-563 Planer Jointer Drive Belt

The Delta 22-563 Planer Jointer Drive Belt shows slipping, excessive wear, or reduced power transfer, inspect the belt for cracks, looseness, glazing, or misalignment before replacing related drive components.

Common Issues This Part Fixes:

• Planer cutterhead does not rotate consistently.

• Drive belt slips during heavy planing.

• Cracked or stretched belt causes power loss.

• Burning rubber smell from worn drive belt.

• Excessive vibration caused by a damaged belt.

Planer Cutterhead Not Turning

Quick Check: Inspect the belt for breakage or complete separation.

Fix Suggestion: Replace the damaged drive belt with the correct Delta replacement belt.

Prevention Tip: Check belt condition periodically and replace it before severe wear develops.

Drive Belt Slipping

Quick Check: Look for glazing, stretching, or reduced belt tension.

Fix Suggestion: Install a new belt if it no longer grips the pulleys properly.

Prevention Tip: Avoid overloading the planer with cuts beyond recommended depth.

Burning Rubber Smell

Quick Check: Examine the belt for excessive friction or pulley misalignment.

Fix Suggestion: Replace the worn belt and inspect pulley alignment.

Prevention Tip: Keep the drive system clean and free from sawdust buildup.

Excessive Vibration

Quick Check: Inspect for uneven belt wear or damaged belt edges.

Fix Suggestion: Replace the belt if wear is uneven or severe.

Prevention Tip: Inspect the drive belt during routine planer maintenance.

Customer Experience: I replaced my worn Delta 22-563 drive belt, and the planer returned to smooth, reliable operation with noticeably better power transfer.
