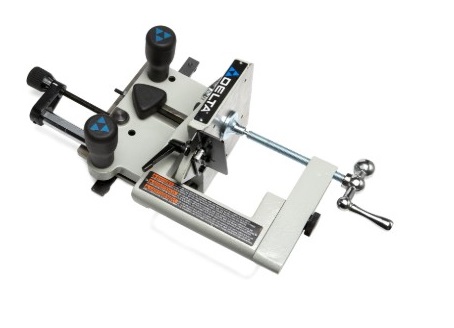

DELTA 34-184 Table Saw Tenoning Jig

The DELTA 34-184 Table Saw Tenoning Jig is designed to securely position workpieces for accurate tenon cutting on compatible table saws. Alignment issues or worn components can reduce precision and cutting stability.

Common Issues This Part Fixes the Following Symptoms:

• Jig movement feels uneven.

• Tenon cuts are inconsistent in size.

• Workpiece slips while cutting.

• Jig loses alignment after adjustment.

• Reduced cutting precision.

Uneven Jig Movement

Quick Check: Slide the jig across the table and check for smooth operation.

Fix Suggestion: Inspect guide surfaces and runners for wear affecting travel.

Prevention Tip: Remove dust buildup after each use.

Inconsistent Tenon Size

Quick Check: Measure multiple test cuts for accuracy.

Fix Suggestion: Check jig adjustment settings for proper blade alignment.

Prevention Tip: Verify setup before beginning production cuts.

Workpiece Slips During Cutting

Quick Check: Test clamp security before powering the saw.

Fix Suggestion: Inspect the clamping assembly for reduced gripping performance.

Prevention Tip: Ensure the workpiece is fully seated against the jig.

Jig Loses Alignment

Quick Check: Recheck alignment after completing several cuts.

Fix Suggestion: Inspect adjustment hardware for looseness affecting positioning.

Prevention Tip: Tighten adjustment points during routine maintenance.

Customer Experience: A customer reported cleaner, more repeatable tenon joints after improving alignment with the DELTA 34-184 Table Saw Tenoning Jig.
