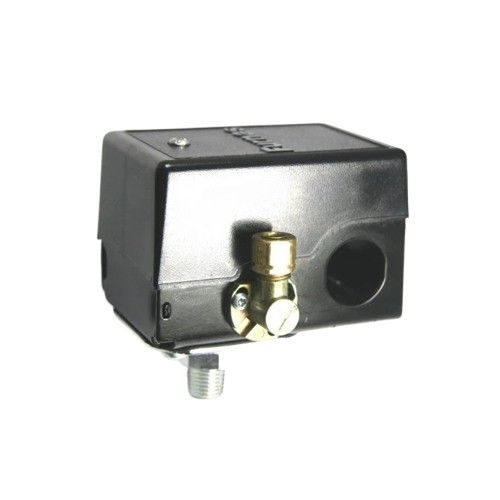

The DeWalt 5130028-01 Air Compressor Pressure Switch is responsible for automatically starting and stopping the compressor based on tank pressure. When this switch begins to fail or misread pressure, the entire compressor cycle becomes unreliable.
Common Issues Related to This SKU:
- Compressor not automatically starting at low pressure.
- Unit failing to shut off at cut-out pressure.
- Rapid on/off cycling (short cycling).
- Air leaks from unloader valve area.
- Burned or stuck electrical contacts inside switch housing.
Compressor Won’t Auto Start at Low Pressure.
Quick Check: Watch tank pressure drop and confirm whether the motor activates at the correct cut-in range.
Fix Suggestion: Inspect internal diaphragm inside the 5130028-01 switch for stiffness or damage, Replace the switch if electrical continuity is not triggered at low pressure.
Prevention Tip: Avoid moisture buildup near the switch to prevent internal corrosion.
Compressor Runs But Never Shuts Off.
Quick Check: Monitor tank pressure as it approaches maximum PSI rating.
Fix Suggestion: Check welded or stuck contacts inside the switch assembly, Replace the pressure switch if contacts are fused closed
Prevention Tip: Ensure proper voltage supply to avoid overheating the switch contacts.
Rapid Cycling (Short Cycling On/Off).
Quick Check: Observe frequent motor starts even with minimal air usage.
Fix Suggestion: Inspect pressure sensing port for blockage or air leaks, Verify that the internal spring mechanism is not weakened
Prevention Tip: Clean air lines and fittings to maintain stable pressure readings.
Air Leaking from Unloader Valve Area.
Quick Check: Listen for hissing sound when compressor stops.
Fix Suggestion: Check unloader valve inside the pressure switch for debris or worn seals, Replace switch if the valve cannot fully close.
Prevention Tip: Avoid excessive vibration of compressor unit during operation.
Customer Experience: Users replacing the 5130028-01 pressure switch often report that compressors return to normal automatic cycling after installation. One common remark is that “the unit started shutting off properly again after the new switch was installed.” Another technician-style note mentioned that replacing the switch resolved persistent non-start issues without further electrical repairs.
