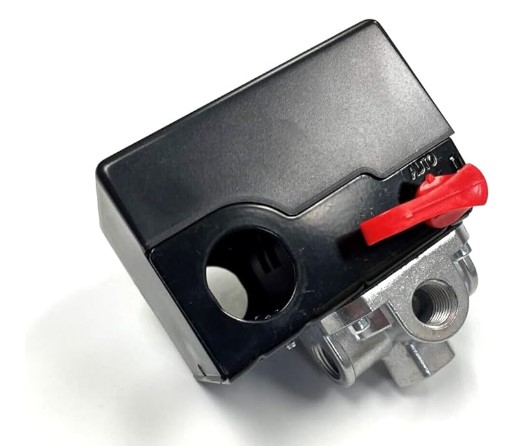

Dewalt 5134377-00SV Pressure Switch

Dewalt 5134377-00SV Pressure Switch is used in compressor control systems to manage automatic cut-in and cut-out based on tank pressure levels. It Supports maintain stable compressor cycling and backing consistent air delivery during tool operation.

This part is commonly used to resolve the following symptoms:

• Compressor does not engage when tank pressure drops below starting range.

• Motor remains inactive even after multiple trigger attempts.

• Electrical signal from switch does not initiate compressor response.

• Pressure drop is visible but control unit does not react.

• System stays idle despite available power supply.

Compressor Not Starting After Pressure Drop

Quick Check: Observe tank gauge and confirm pressure has fallen below expected cut-in level.

Fix Suggestion: Inspect internal switching mechanism if no activation occurs during pressure drop.

Prevention Tip: Keep pressure line free from blockage and avoid moisture buildup inside system.

Motor Continues Without Pressure Cut-Off

Quick Check: Monitor compressor operation after reaching upper pressure limit.

Fix Suggestion: Replace unit if internal contacts fail to disengage electrical flow at cutoff point.

Prevention Tip: Avoid extended operation beyond rated pressure capacity.

Irregular Cycling During Normal Operation

Quick Check: Observe frequent on-off switching without matching pressure changes.

Fix Suggestion: Check sensing accuracy if switching pattern does not match tank behavior.

Prevention Tip: Maintain stable voltage supply to prevent false triggering.

No Signal Transfer to Compressor Motor

Quick Check: Inspect wiring continuity between switch and motor terminal.

Fix Suggestion: Repair or replace switch if electrical path is interrupted internally.

Prevention Tip: Ensure tight terminal connections during installation.

Customer Experience: Users noted that compressor operation became more predictable after installing this switch, with improved pressure response timing and fewer interruptions during continuous tool use.
