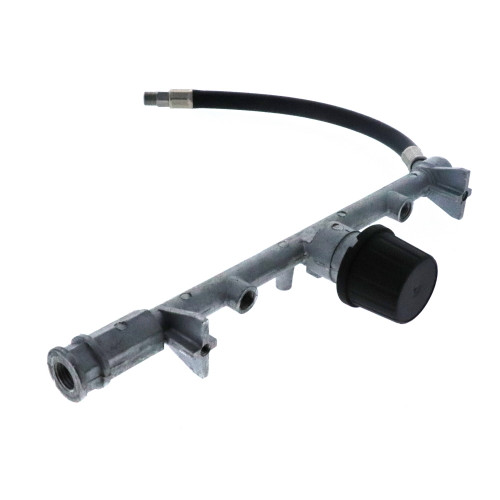

Dewalt 5140069-90 Air Compressor Regulator/Manifold

SKU: 5140069-90 5140069-90 Brand: Availability:
In Stock
(0)

$38.12


Have a Question? +1 (866) 963-0907

Description

DeWalt 5140069-90 Air Compressor Regulator/Manifold is a replacement part that is used in the air compressors for regulating and distributing air pressure. It help regulate the airflow uniformly and enables users to regulate the output pressure for different pneumatic tool effectively. It is suitable for professional use and this regulator increases the longevity of the compressor and it also operates efficiently. For instance, when inflating tires, painting, or using any air tools, it maintains a steady flow of air, sparing the equipment from a lot of wear.

Dimensions:

  • Weight: 0.51 lbs

The Dewalt 5140069-90 Air Compressor Regulator/Manifold is responsible for controlling outlet air pressure and distributing airflow from the compressor tank. When issues occur, they usually show up as unstable pressure delivery, leaks, or inconsistent tool performance.

Common Symptoms for This Parts:

• Outlet air pressure fluctuates during tool use

• Air leaks near regulator knob or manifold body

• Pressure gauge shows incorrect or delayed readings

• Compressor builds pressure but tools receive weak airflow

• Threads or fittings fail to seal properly

Unstable Outlet Pressure

Quick Check: Observe pressure gauge while operating an air tool for sudden drops or spikes

Fix Suggestion: Inspect internal regulator diaphragm for wear or debris blockage and clean or replace if necessary

Prevention Tip: Avoid over-tightening adjustment knob and ensure clean, dry air supply to reduce internal contamination

Air Leakage Around Regulator Knob or Housing

Quick Check: Listen for hissing sounds around adjustment knob or manifold joints when system is pressurized

Fix Suggestion: Tighten manifold connections and replace worn O-rings or seals within the Dewalt 5140069-90 assembly

Prevention Tip: Periodically check seal integrity during routine compressor maintenance cycles

Incorrect or Fluctuating Gauge Readings

Quick Check: Compare reading with a secondary external pressure gauge attached to the outlet

Fix Suggestion: Replace faulty pressure gauge or inspect gauge port blockage in the regulator/manifold unit

Prevention Tip: Keep gauge port free from dust and moisture buildup to maintain accuracy

Thread or Fitting Air Escape

Quick Check: Apply soapy water to fittings and look for bubble formation during operation

Fix Suggestion: Re-seat fittings using proper thread seal tape or replace damaged threaded connectors

Prevention Tip: Use correct torque during installation to prevent cross-threading or micro-leaks

Customer Experience: Users replacing a worn regulator/manifold assembly often report immediate improvement in pressure stability, especially when switching to the Dewalt 5140069-90. One technician noted that “air tools finally ran at consistent force again after swapping the manifold unit.” Another workshop user mentioned reduced downtime thanks to more reliable pressure control after installation.

Disclaimer: Troubleshooting guidance provided for reference only.
  • Is this regulator/manifold compatible with all Dewalt air compressors?

    The Dewalt 5140069-90 is designed for specific Dewalt compressor models that use this manifold configuration. Compatibility depends on the mounting style, inlet/outlet layout, and pressure control system, so matching the original part number is essential before installation.

  • Why is the regulator not maintaining steady pressure anymore?

    If the Dewalt compressor is failing to hold steady pressure, it is often due to internal diaphragm wear, debris inside the regulator chamber, or seal degradation. Cleaning internal passages or replacing worn internal components typically restores stable performance.

  • Can I replace this manifold/regulator myself?

    The compressor can be replaced as a DIY task if basic compressor maintenance skills are available. Ensure the compressor is fully depressurized, disconnect power, and carefully transfer fittings from the old unit to the new manifold without cross-threading.

  • What is the main function of this air compressor manifold?

    It regulates and distributes compressed air from the tank to connected tools. It allows controlled outlet pressure adjustment, ensuring pneumatic tools receive consistent and usable airflow for safe and efficient operation.
