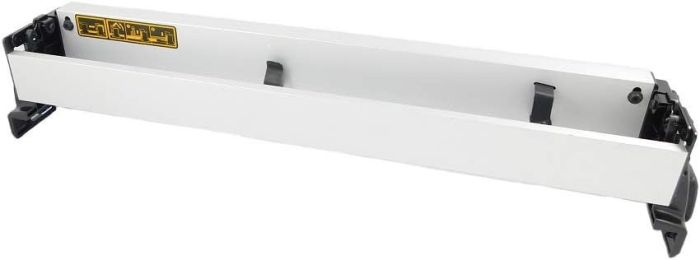

Dewalt 5140131-56 Table Saw Fence Assembly

The Dewalt 5140131-56 Table Saw Fence Assembly acts as a straight, adjustable guide for positioning material during cutting. It helps maintain accurate workpiece alignment and supports repeatable measurements for controlled rip-cut operations.

This part fixes the following symptoms:

• Rip cut dimensions vary between cuts.

• Guide system shifts during material feed.

• Locking action does not hold position securely.

• Straight-cut accuracy becomes difficult to maintain.

• Guide alignment does not remain parallel to the blade.

Inconsistent Rip Cut Measurements

Quick Check: Compare the width of multiple cuts made using the same setting.

Fix Suggestion: Inspect for movement or wear affecting positioning accuracy and replace worn components.

Prevention Tip: Confirm measurement settings before beginning repetitive cutting tasks.

Position Shifts During Operation

Quick Check: Observe whether the guide moves while material is being fed through the blade.

Fix Suggestion: Check mounting and locking components for wear or damage and replace if required.

Prevention Tip: Avoid applying excessive sideways pressure during feed.

Locking Action Fails to Hold

Quick Check: Test whether the selected position remains secure after engaging the lock.

Fix Suggestion: Inspect locking components for wear and replace the assembly if retention is unreliable.

Prevention Tip: Keep contact surfaces clean and free from sawdust buildup.

Reduced Straight-Cut Accuracy

Quick Check: Examine finished cuts for deviation from the intended cutting line.

Fix Suggestion: Verify proper alignment and replace worn components affecting guidance.

Prevention Tip: Routinely inspect guide surfaces for wear or impact damage.

Customer Experience: Users shared that improved cut consistency and stable positioning after replacing the assembly, especially during repetitive rip-cut projects requiring precise measurements.
