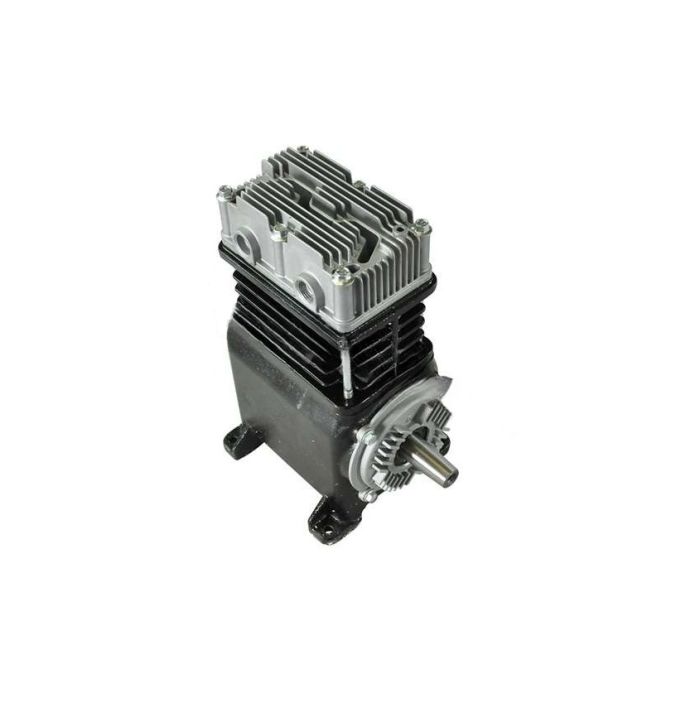

Dewalt 5140235-94 Air Compressor Pump

The Dewalt 5140235-94 Air Compressor Pump is a direct-drive, piston-style replacement pump assembly designed to generate compressed air for select Dewalt stationary compressor systems. It converts mechanical rotation into high-pressure airflow through a crankshaft-driven piston system, supplying consistent output for pneumatic tools, inflation tasks, and workshop air distribution.

Common Issues with 5140235-94 Air Compressor Pump

• Compressor runs but fails to build tank pressure.

• Slow recovery time between air tool usage cycles.

• Excessive heat buildup in pump head during operation.

• Loud knocking or mechanical noise from pump assembly.

• Oil leakage or visible residue around cylinder housing.

Compressor Running but Not Building Pressure

Quick Check: Observe if tank pressure increases at all during a full run cycle

Fix Suggestion: Inspect internal piston rings or reed valves inside the Dewalt 5140235-94 for wear and replace the pump if sealing is compromised

Prevention Tip: Maintain clean intake air filters to prevent internal scoring and valve contamination

Slow Pressure Recovery

Quick Check: Time how long it takes to reach cut-out PSI compared to normal operation

Fix Suggestion: Replace the 5140235-94 pump if compression efficiency has dropped due to worn internal components

Prevention Tip: Avoid continuous heavy-duty operation beyond rated duty cycle limits

Excessive Pump Overheating

Quick Check: Feel for abnormal heat around cylinder head after short runtime

Fix Suggestion: Ensure proper lubrication level and replace pump assembly if internal friction damage is present

Prevention Tip: Keep compressor in a well-ventilated area and avoid blocking cooling fins

Loud Knocking or Mechanical Noise

Quick Check: Listen for rhythmic knocking during piston stroke cycles

Fix Suggestion: Inspect crankshaft bearings and piston assembly; replace the Dewalt 5140235-94 if internal mechanical wear is detected

Prevention Tip: Run compressor only with properly tensioned belts and aligned drive components

Customer Experience: Users replacing the Dewalt 5140235-94 Air Compressor Pump often report a noticeable return to full pressure-building performance, especially when older units were struggling with slow recovery or weak output. Many technicians note that replacing the full pump assembly restores factory-level compression efficiency without needing multiple component repairs.
