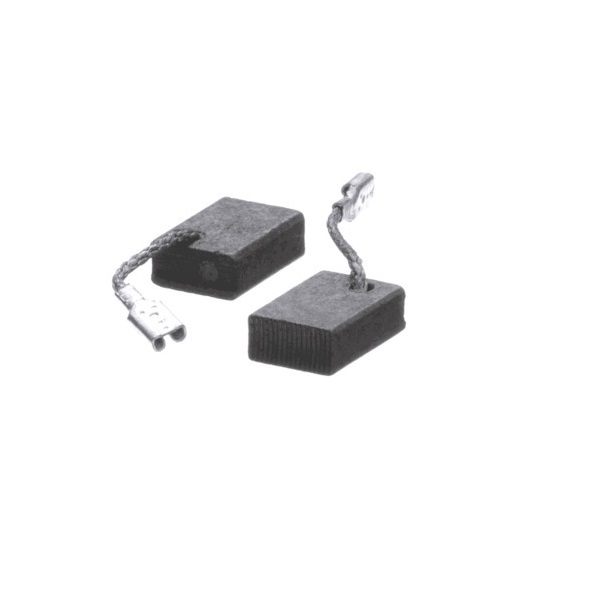

Dynabrade 40750 Bandfile Carbon Brush Set

Product Overview:

Supports electrical current transfer within the Bandfile motor assembly. The Dynabrade 40750 Bandfile Carbon Brush Set provides the sliding electrical contact between the stationary brush holder circuit and the rotating armature commutator. Its construction allows electrical current to reach the rotating motor assembly while accommodating continuous movement and normal contact wear during operation. The brush set is an integral part of the motor's electrical circuit and supports the rotational output required to drive the abrasive belt.

Electrical Current Transfer:

The carbon brushes establish a conductive path between the fixed electrical circuit and the rotating commutator. As the armature turns, the brushes maintain contact with the commutator surface, allowing current to transfer continuously during operation. Proper electrical contact helps the motor maintain consistent electromagnetic operation and produce the rotational output required by the Bandfile drive system.

Brush-to-Commutator Interface:

The brush-to-commutator interface is a sliding electrical connection that operates continuously while the motor is running. Carbon brush material gradually wears as it remains in contact with the rotating commutator. Proper brush seating and contact pressure help maintain consistent current transfer while limiting interruptions in the motor circuit. Excessive wear, chipping, contamination, or surface damage can reduce the quality of electrical contact.

Replacement Guidelines:

Replace the Bandfile Carbon Brush Set if the carbon brushes are excessively worn, chipped, cracked, burned, damaged, or no longer maintain proper contact with the motor commutator. The SKU 40750 should be verified before replacement to ensure the correct carbon brush set is selected. Replace the set if deterioration affects electrical contact, motor performance, power output, sparking, or normal bandfile operation.

Common Failure Symptoms:

• Bandfile motor fails to start.
• Motor operation becomes intermittent.
• Reduced motor output or inconsistent rotation.
• Excessive sparking around the brush and commutator area.
• Burning odor during motor operation.
• Visible arcing or electrical discoloration.
• Increased brush noise during operation.

Equipment Compatibility:

Verify that part number 40750 matches the required replacement component and consult the applicable Dynabrade parts documentation for the Bandfile model before purchase. Confirming the equipment model and original component identification helps ensure the brush set matches the motor's brush holder and commutator configuration.

• Dynabrade 40750 Bandfile Carbon Brush Set used for?

  The Dynabrade 40750 Bandfile Carbon Brush Set is used to support electrical contact within compatible bandfile motor assemblies, helping the motor operate properly.

• How often should carbon brushes be replaced?

  Replacement intervals vary according to operating hours, workload, duty cycle, and brush wear. The brushes should be inspected periodically and replaced when their condition affects reliable motor operation.

• Can damaged carbon brushes cause excessive sparking?

  Yes. Excessive wear, cracking, poor contact, or damaged brush surfaces can increase sparking at the commutator during operation.

• What components work with the 40750 carbon brush set?

  The carbon brush set works with the motor's commutator and armature to maintain the electrical connection required for rotational motor operation.

• Does the Dynabrade 40750 replace the complete motor?

  No. The 40750 is a carbon brush set intended to replace worn brush components within the compatible Bandfile motor assembly.
