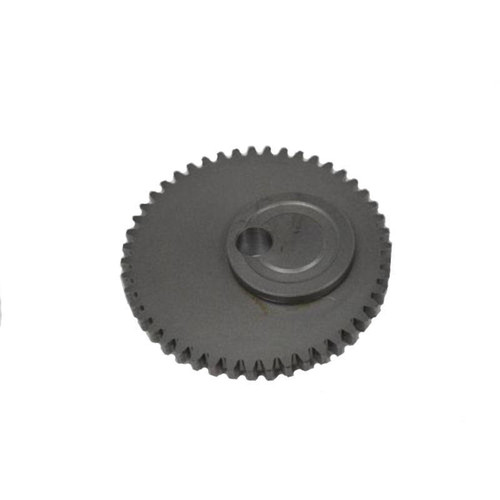

Echo 61031204560 Spur Gear

The Echo 61031204560 Spur Gear transfers rotational movement within lawn tiller drive assemblies, wear or gear damage can affect tiller movement, standard traction, and power transfer.

This part resolves the following symptoms:

• Tiller movement becomes weak during soil cultivation.

• Drive system produces unusual grinding sounds.

• Tines rotate unevenly during tilling operation.

• Tiller movement pauses under normal working load.

• Gear engagement becomes rough during operation.

Weak Tiller Movement

Quick Check: Observe the tiller movement while controlling the drive.

Fix Suggestion: Check the spur gear teeth for excessive wear.

Prevention Tip: Keep gearbox components lubricated according to service requirements.

Grinding From Gearbox

Quick Check: Listen for grinding while the drive system operates.

Fix Suggestion: Clear damaged gear material from the gearbox housing.

Prevention Tip: Regularly prevent dirt buildup around gearbox service areas.

Uneven Tine Rotation

Quick Check: Watch tine movement during steady tiller operation.

Fix Suggestion: Examine gear teeth for asymmetry in contact patterns.

Prevention Tip: Maintain proper gearbox lubrication during scheduled maintenance.

Drive Pauses Under Load

Quick Check: Observe the drive response when entering heavier soil.

Fix Suggestion: Check spur gear interaction with neighboring gears.

Prevention Tip: Avoid operating with severely worn gearbox components.

Customer Experience: A buyer found the tiller moved more evenly after the spout gear was fixed and the assembly was adjusted, the improved gear movement made tilling more consistent during regular yard work.
