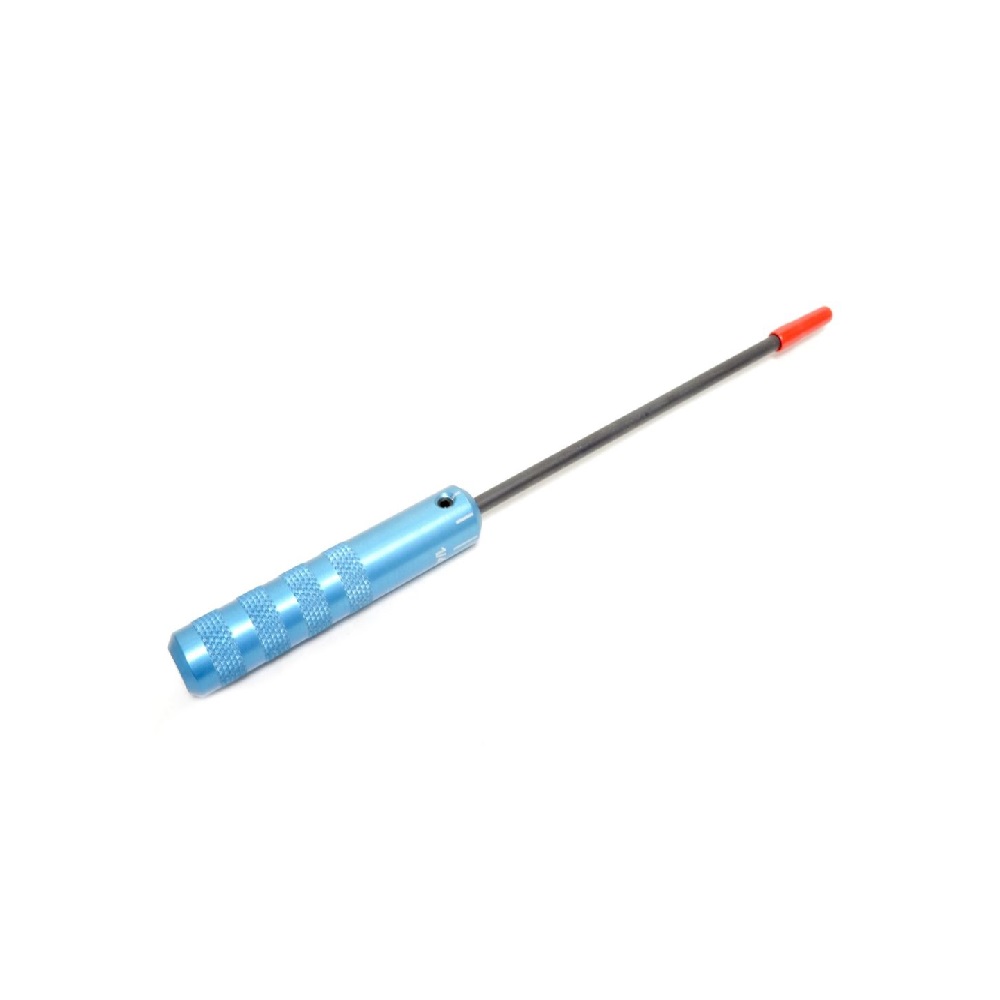

Echo 91159L Carburetor Adjustment Tool for Walbro Long D Style

Product Overview:

Designed for carburetor adjustment applications, the Echo 91159L Carburetor Walbro Adjustment Tool Long D-Style provides the reach and D-style tip configuration needed to engage applicable carburetor adjustment screws. Its long-shaft design extends to recessed adjustment points while providing clearance around the carburetor during applicable service work.

D-Style Adjustment Interface:

The tool's D-style tip engages the corresponding carburetor adjustment screw and transfers hand-applied rotation to the adjustment interface. The shaped tip provides the contact needed for controlled turning of adjustment screws with the corresponding D-style profile.

Extended Reach and Adjustment Access:

The long-shaft configuration provides access to adjustment points that are recessed or positioned away from the outer carburetor surface. This extended reach allows the adjustment interface to be reached while providing clearance around the carburetor and related engine components.

Replacement Guidelines:

Replace the Echo 91147 Compression Gauge when the gauge does not display a pressure reading, produces inconsistent or fluctuating readings, develops air leakage around the hose or connection, or shows visible damage affecting its intended pressure-measuring function. Inspect the related hose, fitting, and sealing areas during replacement for associated damage that could affect the pressure-measurement connection.

Common Signs of Wear:

• Adjustment tip shows visible wear or deformation.
• Shaft is bent or damaged.
• Tool does not fully engage the adjustment screw.
• Tool slips during adjustment.
• Adjustment screw cannot be turned smoothly with the tool.

Equipment Compatibility:

The Echo carburetor must use the specified D-style adjustment screw configuration for 91159L. Confirm the equipment model, carburetor adjustment design, and manufacturer parts documentation before purchase to ensure the tool matches the intended carburetor.

• What should be inspected on the 91159L adjustment tool during maintenance?

  Inspect the tool for visible tip deformation, tip wear, shaft damage, or reduced engagement with the adjustment screw.

• Why is a D-style tip important for carburetor adjustment?

  The D-style tip provides the shaped interface needed to engage a corresponding D-style adjustment screw and transfer rotational movement to it.

• When is a long-shaft carburetor adjustment tool useful?

  The extended shaft provides additional reach when the adjustment point is recessed or positioned away from the outer carburetor surface.

• What can indicate that a carburetor adjustment tool needs replacement?

  Tip deformation, tip wear, shaft damage, or reduced engagement with the adjustment screw can indicate that the tool has deteriorated.

• What should be checked before purchasing a 91159L carburetor adjustment tool?

  Check the adjustment-screw profile, adjustment-point location, and required tool reach against the carburetor's adjustment arrangement.
