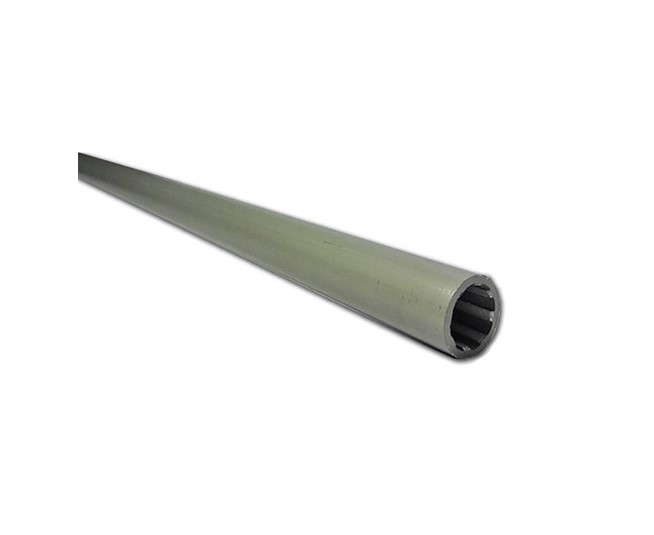

Echo C504000360 Shaft Drive

Product Overview:

Positioned within the pole saw shaft assembly, the Echo C504000360 Pole Saw Drive Shaft transfers rotational movement from the powerhead toward the cutting mechanism. It provides the mechanical connection needed to carry rotation through the extended shaft assembly during pole saw operation.

Rotational Drive Transmission:

The drive shaft carries rotational movement through the pole saw shaft assembly toward the cutting mechanism. Its function is to transmit rotation from the drive source to the cutting end, maintaining the mechanical connection between these areas during operation.

Position and Alignment:

The drive shaft remains positioned within the shaft assembly to maintain the rotational path between connected drive components. Its alignment within the assembly allows rotational movement to pass through the shaft while maintaining the connection between the powerhead and cutting mechanism.

Replacement Guidelines:

Replace the Echo C504000360 Pole Saw Drive Shaft when bending, deformation, excessive wear, damaged connection areas, or other physical deterioration affects rotational movement through the shaft assembly. Inspect the related shaft connections and surrounding drive components during replacement for associated damage that could affect alignment or rotational power transfer.

Common Failure Symptoms:

• Cutting mechanism does not receive rotational movement.
• Abnormal vibration occurs through the shaft assembly.
• Drive shaft movement becomes irregular.
• Visible bending or deformation is present.
• Rotation becomes inconsistent at the cutting end.

Equipment Compatibility:

Before purchasing, verify that part number C504000360 matches the required drive shaft for the equipment. Confirm the applicable pole saw configuration, shaft arrangement, drive connections, cutting-end arrangement, and manufacturer parts documentation before ordering. Do not assume compatibility based only on the general pole saw drive-shaft application.

• What should be inspected on a pole saw drive shaft during maintenance?

  Inspect the shaft for bending, deformation, excessive wear, or damage around its connection areas that could affect rotational function.

• Why is drive shaft alignment important in a pole saw assembly?

  Proper positioning maintains the intended rotational path between connected drive components and allows rotation to pass toward the cutting mechanism.

• How does the drive shaft transfer movement through the pole assembly?

  The shaft carries rotational movement from the powerhead through the extended pole assembly while maintaining the mechanical connection with the cutting end.

• What can happen if a pole saw drive shaft becomes damaged or deformed?

  Damage or deformation may affect alignment and interfere with the shaft's intended transfer of rotational movement toward the cutting mechanism.

• What should be checked before purchasing a C504000360 drive shaft?

  Check the part number, shaft connections, surrounding drive components, and applicable equipment configuration against the manufacturer's parts documentation.
