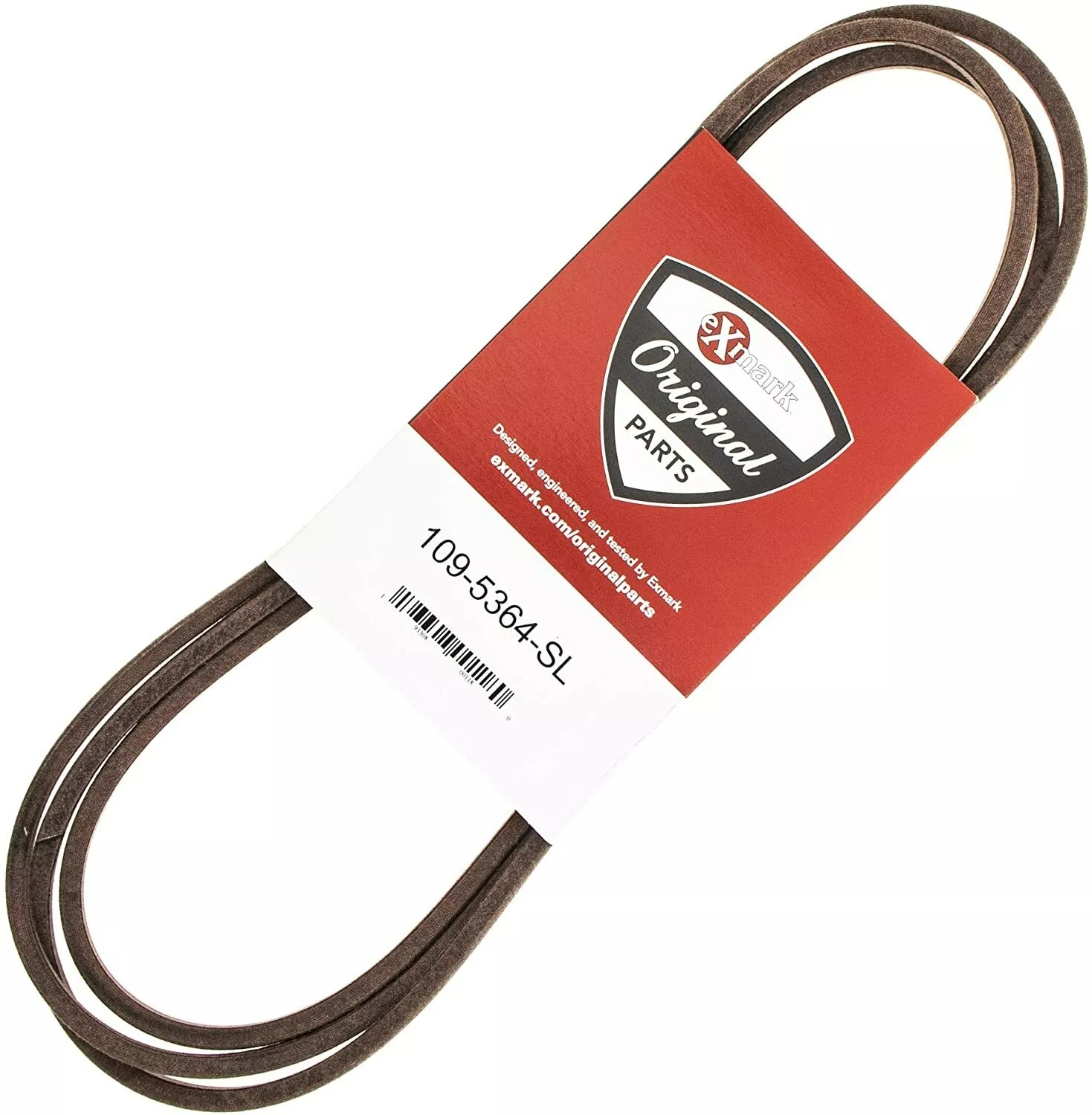

Exmark 109-5364-SL Lawn Mower Deck Belt

Product Overview:

Transfers rotational power through the mower’s pulley system to operate the cutting deck. The Exmark 109-5364-SL Deck Belt supports the movement of deck-driven cutting components during mowing and is identified as a replacement for an earlier belt designation. OEM part references help identify the appropriate belt for the intended application.

Deck Drive Motion Transfer:

The deck belt carries continuous rotational movement through the mower's pulley arrangement, maintaining the mechanical connection between the drive system and the cutting deck. Its flexible belt path allows the connected pulleys to rotate together, directing movement toward the deck-driven components during mowing.

Rotational Force Transmission:

The belt transfers rotational force from the drive pulley to the deck pulley system, allowing mechanical power to reach the cutting components. Its engagement with the connected pulleys supports the transmission of rotational movement and torque required for the deck's cutting operation.

Replacement Guidelines:

Replace the Exmark 109-5364-SL Deck Belt when it becomes cracked, frayed, stretched, glazed, or excessively worn in a way that affects power transmission. A damaged belt should not be relied upon when its condition compromises blade rotation or cutting performance. A qualified technician should inspect the pulleys, idler arms, tensioning system, and related hardware before replacement. Turn off the mower, remove the ignition key, and disconnect the spark plug wire or battery before servicing. Follow Exmark's belt-routing instructions during installation.

Common Signs of Wear:

• Visible cracks or splitting along the belt.
• Frayed or damaged edges.
• Shiny or glazed belt surfaces.
• Burn marks or heat-related deterioration.
• Excessive wear along the belt surface.
• Loss of proper belt engagement with the pulley system.

Equipment Compatibility:

This deck belt is designed for select Exmark Quest zero-turn mowers with 48-inch cutting decks, including Quest models with serial numbers 670,000 and higher. As a genuine OEM replacement part, it is designed to match the original deck-drive configuration. It replaces part number 109-5364. Verify the mower model, serial number, and deck size before ordering

The Exmark 109-5364-SL Lawn Mower Deck Belt is used to transfer power from the engine to the mower deck, keeping the cutting blades turning at the proper speed.

Common Issues:

• Blades disengage unexpectedly.

• Belt slips on deck pulleys.

• Deck vibrates while cutting.

• Belt edges become worn.

• Cutting performance becomes inconsistent.

Blades Disengage Unexpectedly

Quick Check: Inspect the deck belt for proper routing and confirm it remains seated correctly on every pulley.

Fix Suggestion: Remove grass buildup, inspect belt guides, and verify the deck belt follows the correct routing path.

Prevention Tip: Inspect the belt before each mowing session and regularly clear debris from the deck drive system.

Belt Slips On Deck Pulleys

Quick Check: Check pulley surfaces for dirt, excessive wear, or conditions reducing belt grip during operation.

Fix Suggestion: Clean pulley grooves, inspect belt tension, and confirm pulleys rotate freely without resistance.

Prevention Tip: Avoid engaging the mower deck at high engine speed to reduce unnecessary belt stress.

Deck Vibrates While Cutting

Quick Check: Observe belt movement with the blades engaged, and inspect the pulleys for wobbling or alignment issues.

Fix Suggestion: Tighten loose hardware, inspect spindle assemblies, and correct pulley alignment before further operation.

Prevention Tip: Inspect deck hardware routinely to maintain smooth belt travel and balanced blade rotation.

Belt Edges Become Worn

Quick Check: Examine both belt edges for fraying, glazing, or uneven wear patterns after normal mowing.

Fix Suggestion: Inspect pulley alignment, remove obstructions, and replace the belt if significant wear is present.

Prevention Tip: Keep pulley grooves clean and inspect belt condition throughout the mowing season.

Customer Experience: Replacing the Exmark 109-5364-SL Lawn Mower Deck Belt eliminated slipping and restored smooth blade engagement.

• What is the part number of the Exmark Deck Belt, and is it a replacement for another designation?

  The part number is 109-5364-SL. Exmark parts documentation identifies it as the superseding replacement for part number 109-5364. Buyers can use either reference when checking applicable parts documentation.

• Is the Exmark 109-5364-SL an OEM replacement deck belt?

  The 109-5364-SL is identified as an Exmark replacement belt. Check Exmark manufacturer documentation or an authorized parts supplier to confirm its OEM designation for your mower application.

• What maintenance should be performed on the Exmark 109-5364-SL Deck Belt?

  Regularly inspect the belt surface, edges, and pulley engagement as part of mower maintenance. Follow the manufacturer's recommended belt inspection and maintenance schedule to support the intended deck-drive operation.

• How does the 109-5364-SL transfer power to the mower deck?

  The deck belt transfers rotational movement through the mower's pulley arrangement, connecting the drive system with the deck-driven cutting components during mowing.

• Which mower deck configuration is associated with the Exmark 109-5364-SL belt?

  Parts documentation associates this belt with selected Exmark Quest configurations featuring 48-inch mower decks. Verify the complete mower model, serial range, and deck configuration before purchasing.
