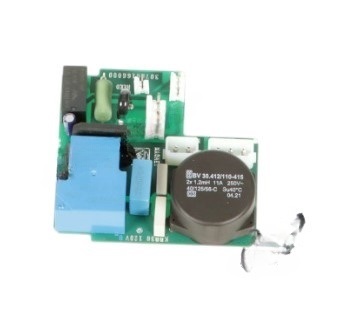

Fein 30798550098 Mortiser PCB Reed 120V KBB30

The Fein 30798550098 Mortiser PCB Reed KBB30 is an electronic control board intended for suitable mortising components operating on a 120V electrical system. It processes reed switch input and supports proper communication within the control system.

Common Symptoms:

• Mortiser fails to respond when switched on.

• Reed switch signal is not recognized by the PCB.

• Control circuit operates intermittently.

• PCB displays visible electrical damage.

• Machine unexpectedly interrupts its operating cycle.

Mortiser Does Not Start

Quick Check: Confirm that 120V power is reaching the PCB and inspect all wiring connections.

Fix Suggestion: Replace the PCB Reed if the board no longer responds to incoming control signals.

Prevention Tip: Protect electrical connectors from moisture and inspect them during routine maintenance.

Reed Signal Is Not Detected

Quick Check: Verify that the reed switch and magnet are properly aligned and functioning.

Fix Suggestion: Install a new PCB if the control board cannot detect the reed switch input.

Prevention Tip: Prevent excessive vibration or impact that could affect sensor positioning.

Intermittent Control Operation

Quick Check: Observe whether the machine starts and stops randomly during repeated operation.

Fix Suggestion: Replace the PCB if internal electronic faults cause inconsistent control signals.

Prevention Tip: Operate the machine with a stable electrical supply and avoid voltage fluctuations.

Circuit Board Shows Damage

Quick Check: Inspect the PCB for burnt components, damaged traces, or overheated areas.

Fix Suggestion: Replace the board if physical or electrical damage is present.

Prevention Tip: Disconnect power before servicing and avoid exposing the electronics to excessive heat.

Customer Experience: My KBB30 mortiser had intermittent startup issues that were difficult to diagnose. After installing the Fein 30798550098 Mortiser PCB Reed 120V KBB30, the controls worked consistently again.
