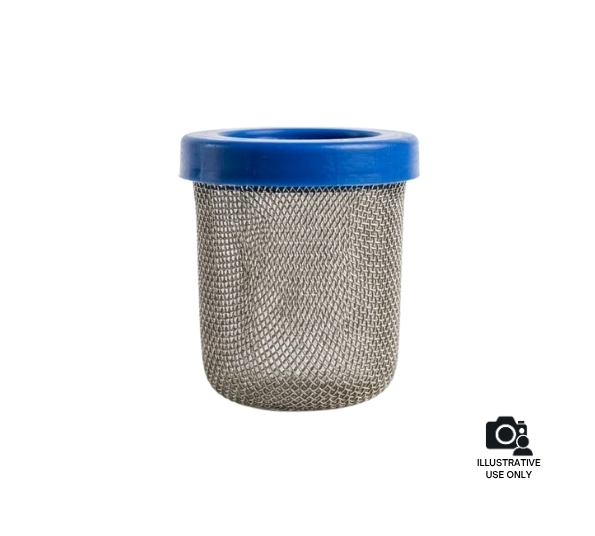

Graco 116085 Sprayer Screen

The Graco 116085 Sprayer Screen helps filter unwanted particles from material entering the paint sprayer system, supporting cleaner fluid movement and spray delivery.

Problems This Part Can Resolve:

• Paint flow becomes restricted during spraying.

• Screen collects excessive coating residue.

• Spray output becomes weaker than usual.

• Debris passes through the screen.

• Fluid delivery becomes uneven during use.

Restricted Material Flow

Quick Check: Observe whether coating output decreases while the sprayer is operating normally.

Fix Suggestion: Clean the screen when accumulated material limits fluid passage.

Prevention Tip: Service the screen regularly to prevent heavy coating buildup.

Heavy Screen Buildup

Quick Check: Look at the screen for dried paint, debris or material covering its surface.

Fix Suggestion: Remove accumulated residue using the cleaning method recommended for the sprayer.

Prevention Tip: Clean the screen before coating residue becomes difficult to remove.

Reduced Spray Output

Quick Check: Compare the current paint stream with the sprayer's usual material flow.

Fix Suggestion: Examine the screen for blockage and inspect the nearby fluid path for restrictions.

Prevention Tip: Keep the material system clean and properly maintained.

Unfiltered Material Passage

Quick Check: Look for debris appearing in the fluid after it passes through the screen.

Fix Suggestion: Renew a damaged screen that no longer provides proper particle screening.

Prevention Tip: Handle the screen carefully during cleaning to avoid damaging its filtering surface.

Customer Experience: A paint sprayer user noticed smoother material flow after cleaning and servicing the clogged sprayer screen.
