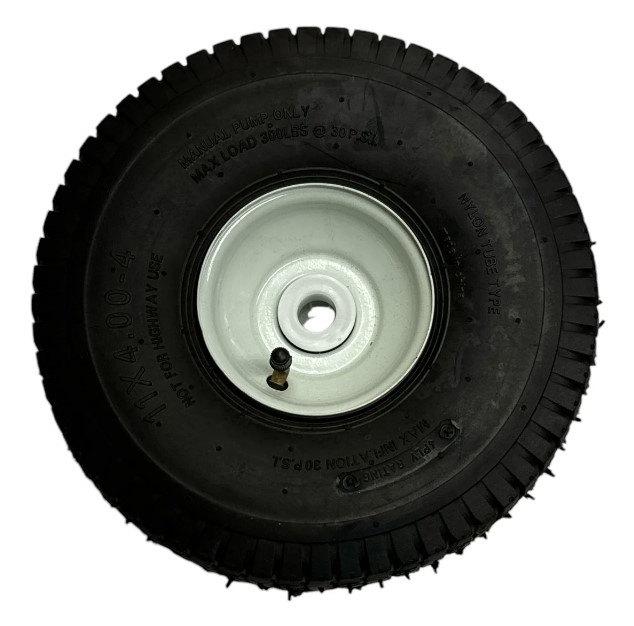

Graco 119420 Pneumatic Wheel

The Graco 119420 Pneumatic Wheel is a substitute wheel for applicable paint sprayer equipment, supporting the chassis during movement and support to maintain balanced equipment across work areas.

This part fixes the following symptoms:

• Uneven movement while repositioning the paint sprayer.

• Wheel wobbling during equipment movement.

• Pneumatic wheel losing proper shape under load.

• Increased resistance while rolling the sprayer.

• Wheel or mounting area showing visible wear.

Wheel Wobbles During Movement

Quick Check: Observe the wheel while moving the sprayer across a level surface.

Fix Suggestion: Align the wheel correctly with its mounting position.

Prevention Tip: Keep wheel mounting hardware properly positioned during routine maintenance.

Rolling Becomes Difficult

Quick Check: Move the sprayer slowly and note resistance from the wheel.

Fix Suggestion: Clear debris around the wheel and axle contact area.

Prevention Tip: Keep the wheel path free from coating residue and loose debris.

Pneumatic Wheel Loses Shape

Quick Check: Compare the wheel profile with its normal rounded shape.

Fix Suggestion: Restore the appropriate tire condition before moving loaded equipment.

Prevention Tip: Avoid prolonged storage with excessive weight on the wheel assembly.

Wheel Shows Surface Wear

Quick Check: Examine the tread and sidewall for cuts or unusual wear.

Fix Suggestion: Address damaged wheel surfaces before continued equipment movement.

Prevention Tip: Move the sprayer over suitable surfaces to limit unnecessary wheel wear.

Customer Experience: A user noted that the Graco 119420 Pneumatic Wheel made repositioning the paint sprayer easier after servicing the wheel assembly.
