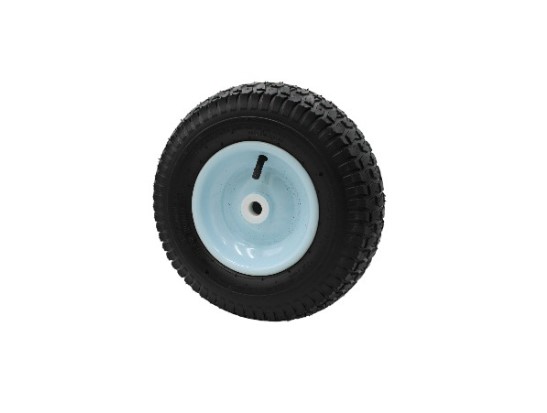

Graco 119509 Pneumatic Wheel

The Graco 119509 Pneumatic Wheel is part of a paint sprayer’s wheel assembly, providing a cushioned rolling surface that supports equipment movement during setup, servicing, and repositioning.

This part resolves the following symptoms:

• Pneumatic wheel loses smooth rolling movement.

• Wheel becomes difficult to rotate during repositioning.

• Sprayer moves unevenly across the work surface.

• Wheel assembly develops noticeable side-to-side movement.

• Wheel shows reduced air pressure during use.

Reduced Wheel Air Pressure

Quick Check: Press the tire and assess whether noticeable air loss exists.

Fix Suggestion: Restore the pneumatic wheel to its specified inflation level.

Prevention Tip: Check tire pressure periodically before moving the paint sprayer.

Wheel Rolls Unevenly

Quick Check: Roll the sprayer slowly and observe the wheel’s travel path.

Fix Suggestion: Remove debris around the wheel and axle contact points.

Prevention Tip: Keep floor surfaces clear of materials that can obstruct movement.

Wheel Wobbles During Movement

Quick Check: Observe the wheel while moving the sprayer over a level surface.

Fix Suggestion: Secure loose mounting hardware around the pneumatic wheel assembly.

Prevention Tip: Verify wheel mounting remains firm during routine equipment maintenance.

Wheel Rotation Feels Stiff

Quick Check: Rotate the wheel manually with the equipment stationary.

Fix Suggestion: Address binding around the axle before continued equipment movement.

Prevention Tip: Avoid excessive side loading while maneuvering the sprayer.

Customer Experience: A customer observed that the Graco 119509 Pneumatic Wheel was able to make paint sprayer repositioning smoother, particularly when moving equipment across larger work areas.
