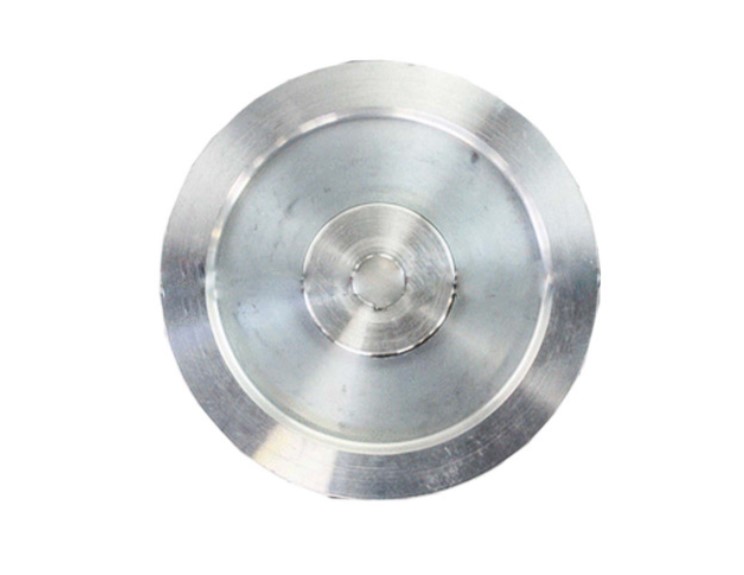

Graco 15G812 Pulley, Pump

The Graco 15G812 Pulley Pump helps transfer rotary motion within the paint sprayer pump assembly, supporting proper pump operation during material spraying.

Symptoms This Part Can Address:

• Pump pulley produces unusual squealing sounds.

• Paint sprayer develops uneven pump movement.

• Pulley shows visible groove wear.

• Pump drive becomes difficult to engage.

• Pulley movement appears loose or unstable.

Pulley Noise Develops

Quick Check: Listen near the pump area for squealing, rattling or rubbing sounds during sprayer operation.

Fix Suggestion: Replace the pulley if wear or damage is causing abnormal contact with the drive system.

Prevention Tip: Keep the pulley area free from paint buildup and debris.

Uneven Pump Movement

Quick Check: Observe whether the pump movement appears irregular while the sprayer is operating.

Fix Suggestion: Fit a properly seated pulley when wear affects smooth rotary movement.

Prevention Tip: Include the pump pulley in routine sprayer maintenance.

Groove Wear Appears

Quick Check: Examine the pulley grooves for visible wear, damage or deformation.

Fix Suggestion: Renew the pulley when worn grooves can affect drive engagement or belt contact.

Prevention Tip: Keep the drive components clean and properly maintained.

Loose Pulley Movement

Quick Check: Look for unusual pulley movement while the pump drive is operating.

Fix Suggestion: Secure the pulley assembly or replace the pulley if physical wear prevents proper positioning.

Prevention Tip: Follow the paint sprayer service recommendations for pump-drive maintenance.

Customer Experience: After installing the new pump pulley, a paint sprayer owner noticed smoother pump movement during a spraying operation.
