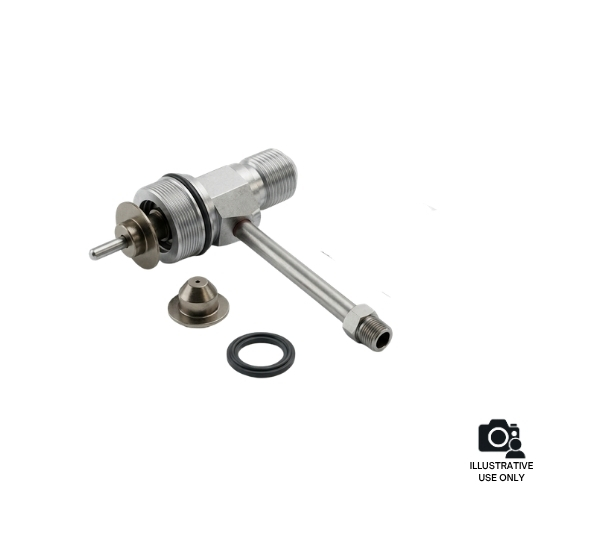

Graco 18H056 Quickshot Needle Valve Kit

Product Overview:

Controls the passage of coating material within the QuickShot spray gun's fluid-control assembly while maintaining the valve interface required for proper operation. The Graco 18H056 QuickShot Needle Valve Kit forms part of the spray gun's internal fluid path and works with the surrounding valve and trigger components to regulate material movement through the gun. Its sealing surfaces help maintain the intended fluid boundary when the valve is in its operating position.

Needle Valve Fluid Control:

Controls coating-fluid movement through the spray gun by opening and closing the designated fluid passage in response to the gun's operating mechanism. The needle valve establishes the controlled interface between the incoming fluid path and the spray mechanism, allowing material to pass when the valve is actuated and restricting flow when it returns to its closed position.

Trigger-to-Valve Interaction:

Trigger movement is transferred through the associated mechanism to influence valve positioning, allowing the fluid passage to respond to the operator's input. Correct positioning between these components helps maintain the intended sequence of valve opening and closing during repeated spray cycles.

Replacement Guidelines:

Replace the Needle Valve Kit if it is cracked, damaged, worn, clogged, leaking, or no longer controls fluid flow properly. Verify SKU 18H056 before replacement. Replace the kit if deterioration affects valve sealing, flow control, pressure, or normal paint sprayer operation.

Common Signs of Wear:

• Irregular or interrupted coating-fluid delivery.
• Failure of the spray gun to dispense material as intended.
• Fluid leakage around the needle-valve area.
• Restricted or inconsistent valve movement.
• Visible wear, damage, or deterioration of the valve components.
• Spray-gun operation affected by improper valve sealing or movement.

Equipment Compatibility:

The Graco 18H056 QuickShot Needle Valve Kit is intended for compatible Graco QuickShot equipment requiring the specified needle valve kit configuration. Compatibility should be confirmed by matching part number 18H056, the complete equipment model information, and applicable parts documentation before purchase. Verify the needle valve configuration, mounting arrangement, fluid connections, and equipment requirements to ensure proper fit, secure installation, and normal equipment operation.

• What is the Graco 18H056 Needle Valve Kit used for?

  The 18H056 is used as a needle valve service component within the QuickShot spray gun, controlling the designated fluid passage and supporting proper valve sealing during operation.

• How should the Graco 18H056 QuickShot Needle Valve Kit be maintained?

  Inspect the needle valve kit regularly for paint buildup, contamination, wear, or damaged components, and clean it according to the manufacturer’s service procedures to help maintain proper fluid control.

• What can cause leakage around a QuickShot needle valve?

  Worn sealing surfaces, valve damage, contamination, incorrect installation, or deterioration of mating components can interfere with the intended fluid seal and contribute to leakage.

• How can a worn needle valve affect spray performance?

  Excessive wear or restricted valve movement can interfere with the intended fluid-control action, potentially causing inconsistent, interrupted, or reduced material delivery.

• When should the Graco 18H056 QuickShot Needle Valve Kit be replaced?

  The needle valve kit should be replaced when its components are worn, damaged, or no longer provide proper fluid shutoff or control during normal paint sprayer operation.
