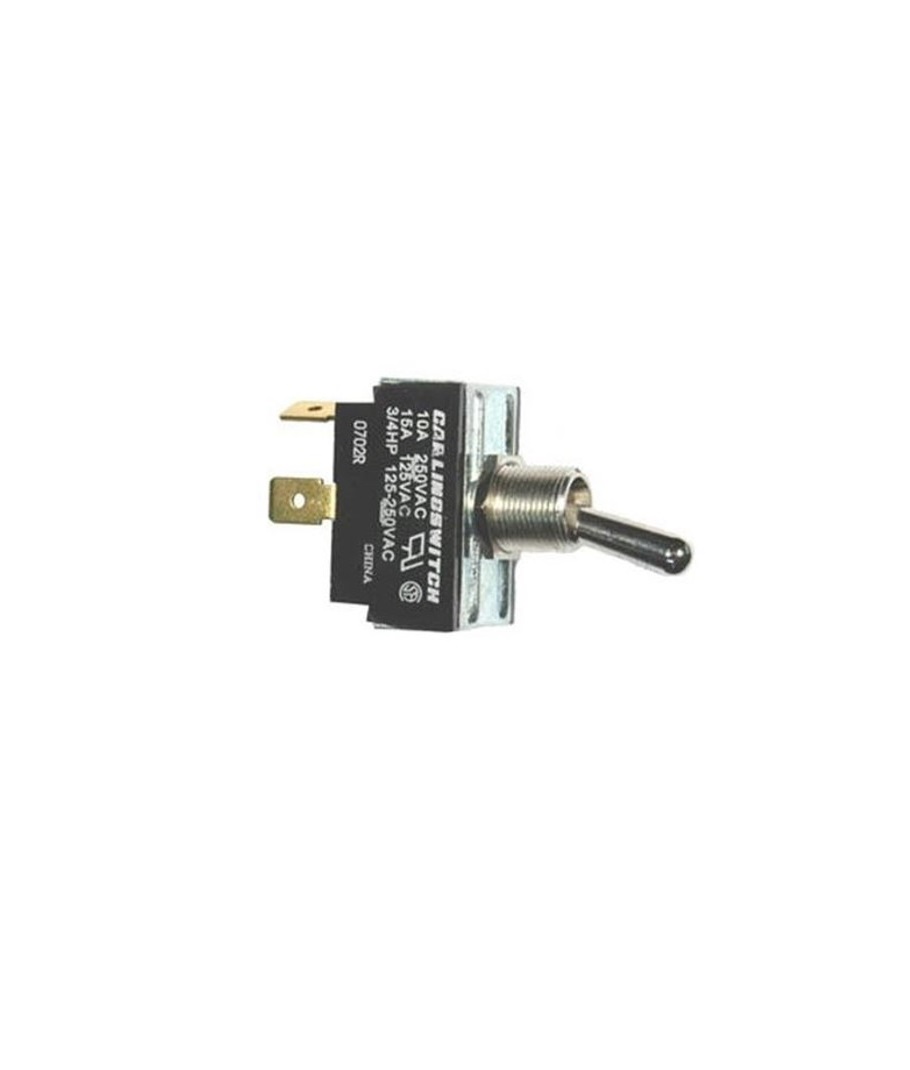

Graco 195429 Sprayer Toggle Switch

The Graco 195429 Sprayer Toggle Switch provides manual electrical control for compatible paint sprayer equipment, helping operators start or stop the sprayer through the control circuit.

This part may resolve the following problems:

• Toggle fails to change the selected state.

• Lever develops excessive side movement.

• Sprayer responds intermittently to toggle movement.

• Toggle handle becomes cracked or bent.

• Electrical contact becomes unreliable during operation.

Failed Toggle Response

Quick Check: Move the toggle through its normal positions and observe whether the related sprayer function changes with each selection.

Fix Suggestion: Have the toggle and associated circuit evaluated when the switch no longer provides dependable electrical switching.

Prevention Tip: Keep the lever within its intended travel and avoid forcing it beyond the normal position.

Excessive Lever Play

Quick Check: Gently move the toggle and compare its side movement with the normal travel expected from the control.

Fix Suggestion: Address worn mounting or switch components that allow excessive lever movement within the panel.

Prevention Tip: Prevent hoses and cords from catching against the toggle during equipment handling.

Intermittent Response

Quick Check: Select the toggle position several times and observe whether the sprayer reacts differently to repeated normal movements.

Fix Suggestion: Have the switch terminals and related connections evaluated for intermittent contact or deterioration.

Prevention Tip: Address inconsistent switching before using the sprayer for lengthy coating work.

Handle Damage

Quick Check: Examine the toggle handle for cracks, bending, missing material or other physical deterioration.

Fix Suggestion: Renew the switch when actuator damage prevents proper movement or control.

Prevention Tip: Protect the toggle from impact during transport, storage and cleaning.

Customer Experience: A customer reported more dependable sprayer operation after securing a loose toggle-switch connection and correcting movement at the mounting point.
