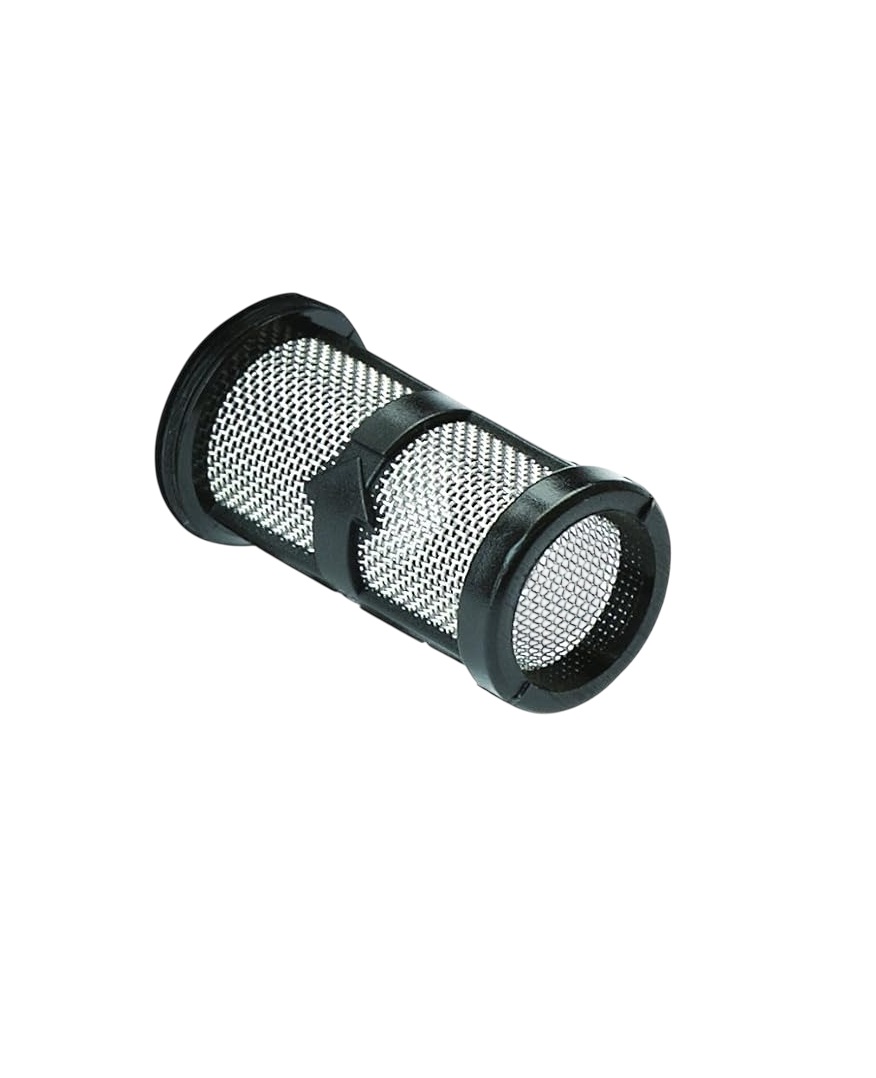

Graco 24F039 Sprayer Tip Filter Pack-3

The Graco 24F039 Sprayer Tip Filter Pack-3 allows users to filter coating material before it reaches the spray tip, supporting consistent fluid flow and reducing debris-related spray interruptions.

This part addresses the following symptoms:

• Spray tip becoming clogged during coating application.

• Uneven spray pattern caused by fluid debris.

• Reduced coating flow through the spray tip.

• Frequent interruption during spraying operations.

• Filter becoming blocked with dried coating material.

Clogged Tip Filter

Quick Check: Remove the filter and look for trapped coating particles.

Fix Suggestion: Remove trapped coating particles from the filter using a cleaning method suitable for the filter material.

Prevention Tip: Strain coating material before filling the sprayer for application.

Uneven Spray Pattern

Quick Check: Observe the spray fan for gaps or irregular distribution.

Fix Suggestion: Clear obstruction from the tip filter and confirm proper seating.

Prevention Tip: Clean filtration components after spraying heavily pigmented coatings.

Reduced Fluid Flow

Quick Check: Compare current coating flow against the sprayer's normal output.

Fix Suggestion: Flush accumulated material from the filter before continued spraying.

Prevention Tip: Prevent dried coating from remaining inside the filter between uses.

Filter Becomes Damaged

Quick Check: Examine the filter for tears, deformation, or blocked openings.

Fix Suggestion: Use an undamaged filter suited to the applicable spray tip.

Prevention Tip: Handle the filter carefully during cleaning and tip servicing.

Customer Experience: A user observed fewer debris-related interruptions after servicing the Graco 24F039 Sprayer Tip Filter Pack-3 and keeping the filter clean during regular use.
