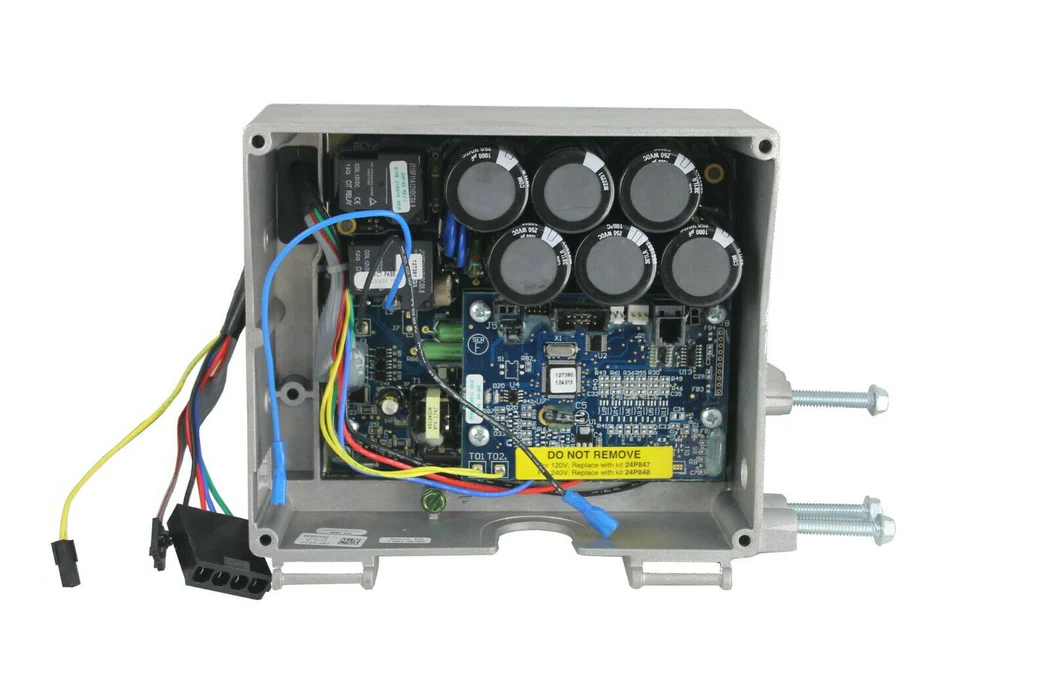

Graco 24P847 Control Board Kit 120V

The Graco 24P847 Control Board Kit 120V manages electrical signals within the paint sprayer control system, supporting proper operation of connected controls and components.

Common Issues List:

• Sprayer fails to respond after power-up.

• Control functions stop during operation.

• Electrical signals become inconsistent.

• Sprayer starts but stops unexpectedly.

• Board shows visible electrical damage.

Power-Up Response Failure

Quick Check: Observe whether the control panel responds when the sprayer receives electrical power.

Fix Suggestion: Examine the control board connections and related wiring for loose or damaged electrical connections.

Prevention Tip: Keep electrical connections secure and protect the control area from moisture.

Interrupted Control Signals

Quick Check: Watch whether connected controls respond consistently during normal sprayer operation.

Fix Suggestion: Inspect the board connections and wiring for damaged terminals or interrupted electrical contact.

Prevention Tip: Include control-board connections in routine sprayer maintenance.

Unexpected Sprayer Shutdown

Quick Check: Note whether the sprayer stops while the controls are being used normally.

Fix Suggestion: Examine the control board and associated electrical connections for signs of damage or loose contact.

Prevention Tip: Address intermittent electrical behavior before continued operation.

Visible Board Damage

Quick Check: Look over the control board for burned areas, damaged components or unusual discoloration.

Fix Suggestion: Replace the control board kit when visible damage affects electrical control operation.

Prevention Tip: Keep the electrical compartment clean, dry, and properly protected.

Customer Experience: A customer reported more consistent sprayer operation after correcting a loose connection within the control panel assembly.
