Graco NAR315 Spray Tip Guard Assembly-315

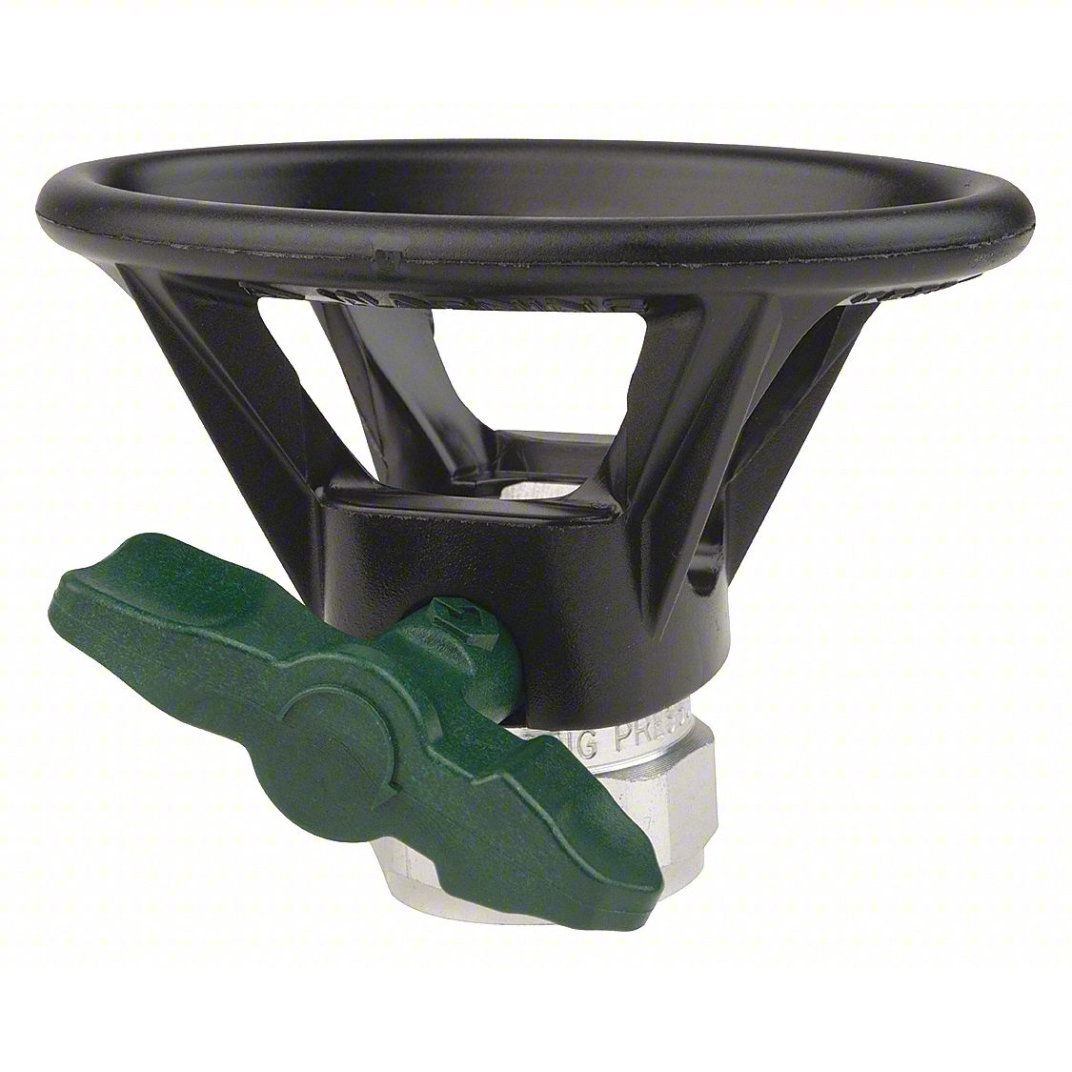

The Graco NAR315 Spray Tip Guard Assembly-315 forms part of the front spray setup, supporting the correct placement and alignment of the spray tip during operation.

This part addresses the following symptoms:

• Spray tip becomes difficult to position correctly.

• Guard feels loose during spraying.

• Coating residue accumulates around the tip opening.

• Spray pattern uneven from poor tip positioning.

• Tip guard becomes difficult to remove or adjust.

Loose Tip Guard

Quick Check: Gently check whether the guard moves after being secured.

Fix Suggestion: Seat the guard firmly against the designated mounting area.

Prevention Tip: Confirm proper guard seating before beginning each spraying session.

Tip Alignment Issue

Quick Check: View the spray tip straight on through the guard opening.

Fix Suggestion: Reposition the guard until the tip sits centrally within its opening.

Prevention Tip: Avoid forcing the guard sideways during fitting or adjustment.

Coating Buildup

Quick Check: Examine the guard opening for dried paint deposits.

Fix Suggestion: Soften accumulated coating using the sprayer-approved cleaning method.

Prevention Tip: Remove wet coating residue before it dries around the guard.

Uneven Spray Pattern

Quick Check: Observe the spray pattern after confirming the guard is seated correctly.

Fix Suggestion: Clear residue around the tip and restore unobstructed spray passage.

Prevention Tip: Keep the tip guard opening free from accumulated coating.

Customer Experience: A customer reported that securing the Graco NAR315 guard properly helped keep the spray tip positioned consistently during spraying.
