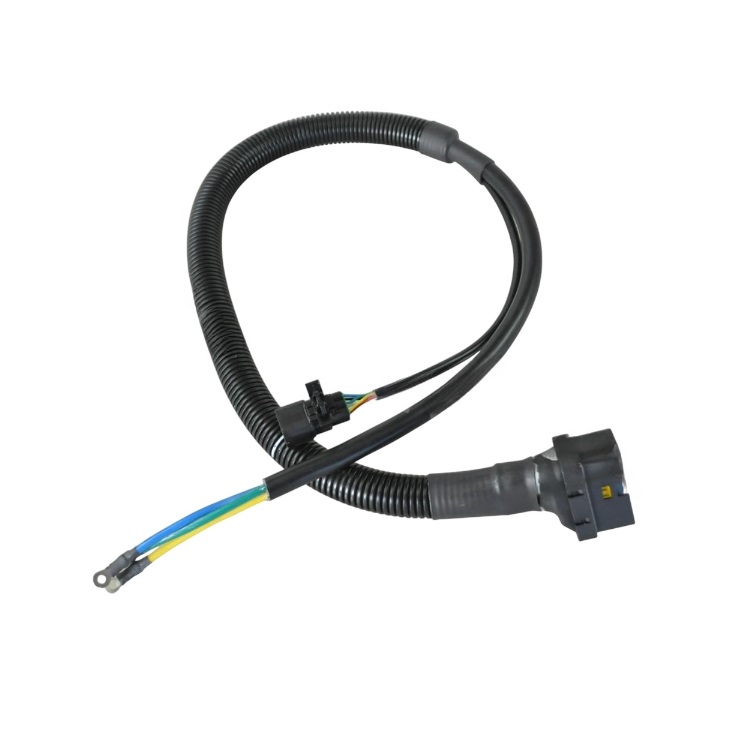

Greenworks R0203240-00 Lawn Mower Motor Harness

Product Overview:

Provides the electrical connection framework for the lawn mower's motor circuit. The Greenworks R0203240-00 Motor Harness combines multiple conductors and connectors into one organized wiring assembly, establishing electrical pathways between the motor and related components. It supports the transmission of power and control signals through the motor circuit while maintaining the intended electrical connection layout. Properly fitted wiring helps preserve electrical continuity and supports consistent motor operation during normal mower use.

Connector Interface:

Factory-configured connectors provide designated connection points between the motor harness and related electrical components. Proper connector engagement helps maintain electrical continuity and reduces the possibility of loose connections within the motor circuit.

Wiring Insulation:

Insulated conductors help separate individual electrical pathways while protecting the internal wiring from external contact. Maintaining intact insulation helps preserve circuit separation and supports reliable electrical operation.

Replacement Guidelines:

Replace the Lawn Mower Motor Harness if the wiring is cut, frayed, burned, corroded, damaged, or no longer provides reliable electrical continuity. The part number R0203240-00 and lawn mower motor harness configuration should be verified before replacement to ensure the correct harness is selected. Replace the motor harness if deterioration affects electrical connection, signal or power transmission, wiring integrity, motor operation, or normal lawn mower performance.

Common Failure Symptoms:

• Motor fails to receive electrical power.
• Intermittent motor operation.
• Loss of electrical continuity within the motor circuit.
• Motor stops unexpectedly during operation.
• Visible cuts, cracks, or exposed conductors.
• Burn marks or melted insulation.
• Corroded or damaged connector terminals.
• Loose or damaged connector housings.

Equipment Compatibility:

The Greenworks R0203240-00 Lawn Mower Motor Harness is intended for compatible Greenworks lawn mower equipment requiring the specified motor harness configuration. Compatibility should be confirmed by matching part number R0203240-00, the complete lawn mower model information, and applicable parts documentation before purchase. Verify the harness configuration, electrical connections, routing, and motor requirements to ensure proper fit, reliable power transmission, and normal lawn mower operation.

• What does the Greenworks R0203240-00 Motor Harness connect?

  The motor harness provides electrical connections between the mower motor and related components within the motor control circuit.

• What can cause a lawn mower motor harness to fail?

  Heat, vibration, abrasion, moisture, physical damage, connector deterioration, corrosion, and normal electrical stress can affect the harness over time.

• What happens if a motor harness has a damaged conductor?

  A damaged conductor can interrupt electrical continuity and may cause intermittent motor operation, reduced electrical connectivity, or complete loss of power to the motor.

• Why are connectors important in a motor harness?

  Connectors establish the designated electrical connection points between the harness and related components, helping maintain continuity throughout the motor circuit.

• Can damaged wiring affect lawn mower motor performance?

  Yes. Damaged wiring can interfere with power or control-signal transmission and may cause inconsistent or interrupted motor operation.
