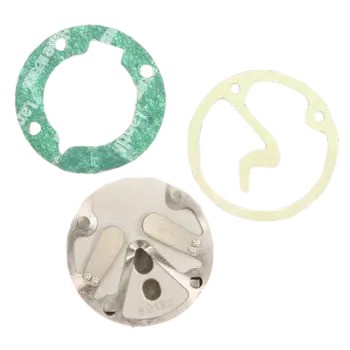

Grip-Rite GRCE1690 Valve Plate Assembly

The Grip-Rite GRCE1690 Valve Plate Assembly plays a critical role in regulating airflow, compression cycles, and overall pressure stability inside compatible air compressors. When issues arise, they often show up as performance loss, irregular cycling, or air delivery problems.

Common Symptoms Linked to This Valve Plate Assembly:

• Compressor struggling to build pressure

• Air leakage from head assembly area

• Irregular or short cycling

• Reduced airflow output

• Overheating during operation

Compressor Not Building Enough Pressure

Quick Check: Inspect valve plate for carbon buildup or warped sealing surfaces

Fix Suggestion: Clean or replace the Grip-Rite GRCE1690 Valve Plate Assembly if reed valves are stuck or damaged

Prevention Tip: Drain tank regularly to prevent moisture-related corrosion inside valve components

Air Leakage from Pump Head Area

Quick Check: Listen for hissing around cylinder head during idle and compression phase

Fix Suggestion: Tighten head bolts evenly and inspect gasket alignment with the valve plate assembly

Prevention Tip: Avoid over-tightening during reassembly to maintain proper seal integrity

Reduced Airflow Output

Quick Check: Check discharge line and valve plate ports for blockage or debris

Fix Suggestion: Remove and clean valve plate passages or install a new assembly if wear is excessive

Prevention Tip: Use clean, dry air intake conditions to reduce internal contamination

Overheating During Compressor Operation

Quick Check: Feel for excessive heat buildup near pump head after short run cycles

Fix Suggestion: Inspect valve plate sealing efficiency; replace if compression loss is causing extended run times

Prevention Tip: Allow adequate cooling intervals between heavy-duty usage cycles

Customer Experience: Many users report that replacing the valve plate assembly restores strong, steady airflow and eliminates inconsistent cycling issues. One technician noted that after installing the GRCE1690 unit, pressure recovery time improved noticeably and the compressor stopped struggling under load. Another user highlighted smoother operation after resolving air leakage at the head.

• Is the Grip-Rite GRCE1690 Valve Plate Assembly compatible with all Grip-Rite air compressors?

  This valve plate assembly is designed for specific Grip-Rite compressor models that match its head and pump configuration. Compatibility depends on matching the exact pump design and mounting structure rather than general brand fitment. Always verify your compressor model before installation.

• What should I do if the valve plate assembly is installed but the compressor still won't build pressure?

  If performance issues persist, the problem may be due to damaged reed valves, improper gasket sealing, or debris inside the pump head. Inspect the full head assembly and ensure the sealing surfaces are clean and properly aligned.

• Can I replace the Grip-Rite Valve Plate Assembly myself?

  replacement is typically manageable for users with basic mechanical experience. It requires removing the pump head, carefully aligning the new valve plate, and tightening bolts evenly to maintain proper compression sealing.

• What is the main function of the Grip-Rite GRCE1690 Valve Plate Assembly?

  This component controls airflow direction during compression and intake cycles inside the air compressor pump. It ensures proper pressure buildup, efficient air delivery, and stable cycling performance during operation.
