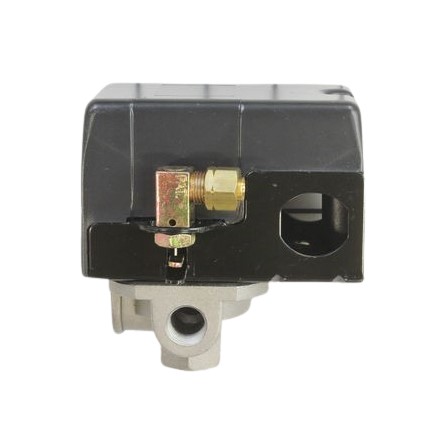

Grip-Rite PACP437 Pressure Switch

The Grip-Rite PACP437 Pressure Switch is an electrical control component that senses the air tank and controls the operation of compatible air compressors. It switches the compressor motor on and off to maintain normal system pressure.

This part can resolve the following symptoms:

• Compressor does not restart after the air tank pressure becomes too low.

• Motor continues running instead of stopping at the normal pressure level.

• Pressure switch responds slowly when the compressor starts or stops.

• Air escapes from the pressure switch body or threaded connections.

• Compressor pressure remains unstable during normal operating cycles.

Compressor Does Not Restart

Quick Check: Confirm that the pressure switch is receiving electrical power and inspect the wire terminals.

Fix Suggestion: Replace the pressure switch if it does not respond when tank pressure falls below the operating range.

Prevention Tip: Inspect the wiring periodically and keep the switch protected from dust and moisture.

Compressor Runs Beyond Cut-Out Pressure

Quick Check: Watch the pressure gauge to determine whether the compressor exceeds its normal shut-off point.

Fix Suggestion: Replace the pressure switch if it does not disconnect the motor after the desired pressure is reached.

Prevention Tip: Test the compressor shut-off function during routine maintenance.

Delayed Pressure Switch Response

Quick Check: Observe whether there is a delay between pressure changes and compressor operation.

Fix Suggestion: Inspect the pressure switch for internal wear and replace it if response remains inconsistent.

Prevention Tip: Keep the compressor operating within its recommended pressure range.

Air Leakage at the Pressure Switch

Quick Check: Inspect the threaded ports and fittings for leaks or damaged threads.

Fix Suggestion: Tighten the fittings or replace the pressure switch if the housing cannot maintain an airtight seal.

Prevention Tip: Apply the recommended thread sealant and avoid cross-threading during installation.

Customer Experience: Customers have installed the Grip-Rite PACP437 Pressure Switch, restored normal compressor cycling, improved pressure control, and stopped air leakage around the switch assembly.
