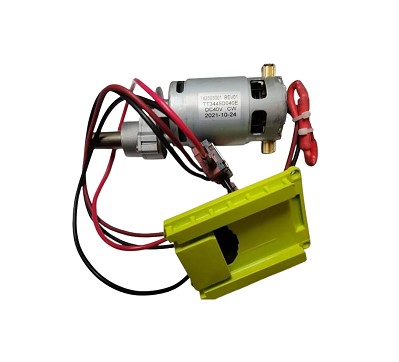

Homelite 317464001 Motor Gear Box Switch And Contact Plate Assembly

Product Overview:

Converts electrical power into mechanical drive while integrating the motor, gear box, switch, and contact plate into one operating assembly for cordless trimmer powerheads. The Homelite 317464001 Trimmer Motor Gear Box Switch And Contact Plate Assembly combines the primary drive and electrical control components required within the powerhead, allowing the assembly to coordinate electrical input with mechanical output.

Motor Function:

The motor converts supplied electrical energy into rotational mechanical motion that provides the drive force for the trimmer's operating mechanism. This motor function establishes the mechanical output needed by the integrated gear box to transmit rotation through the powerhead toward the connected cutting attachment.

Power Transmission & Mechanical Operation:

The integrated gear box receives rotational output from the motor and transfers that motion through the powerhead's mechanical drive system. The switch and contact plate form part of the same assembly, coordinating the electrical connection associated with motor operation. Together, these integrated components combine electrical control, motor rotation, and mechanical transmission within one assembly.

Replacement Guidelines:

The Homelite 317464001 should be replaced when the integrated assembly no longer provides reliable electrical control or mechanical drive operation. During replacement, inspect the wiring connections, drive interfaces, and mounting points for related damage. After installation, verify that the motor starts correctly and the drive mechanism operates smoothly.

Common Failure Symptoms:

• Trimmer does not start when the control is activated.
• Intermittent operation during use.
• Loss of electrical response from the switch area.
• Reduced or inconsistent cutting head rotation.
• Unusual noise from the drive section.

Equipment Compatibility:

The Homelite 317464001 Motor Gear Box Switch and Contact Plate Assembly is identified in parts documentation for the Ryobi RY40006 40V String Trimmer Powerhead. Verify the exact equipment model, manufacturer part number, and applicable parts documentation before purchase.

• What can cause the Homelite 317464001 trimmer motor to run but the cutting attachment not to rotate properly?

  A problem within the integrated gear box or mechanical drive section can interfere with the transfer of motor rotation to the connected cutting attachment.

• What should be checked if the trimmer does not respond when the switch is activated?

  Inspect the switch, contact plate, electrical connections, and related powerhead components for damage or conditions that could interrupt the electrical path.

• Can unusual noise indicate a problem with the gear box section?

  Yes. Unusual noise from the drive section may indicate wear, damage, or an engagement issue involving the integrated gear box or connected mechanical components.

• What can cause intermittent operation of the motor assembly?

  Intermittent operation may be associated with worn electrical contacts, connection issues, switch problems, or other faults within the integrated assembly.

• Why should the complete assembly part number be verified before replacement?

  The motor, gear box, switch, and contact plate are supplied as an integrated assembly, so verifying part number helps ensure the replacement matches the intended equipment configuration.
